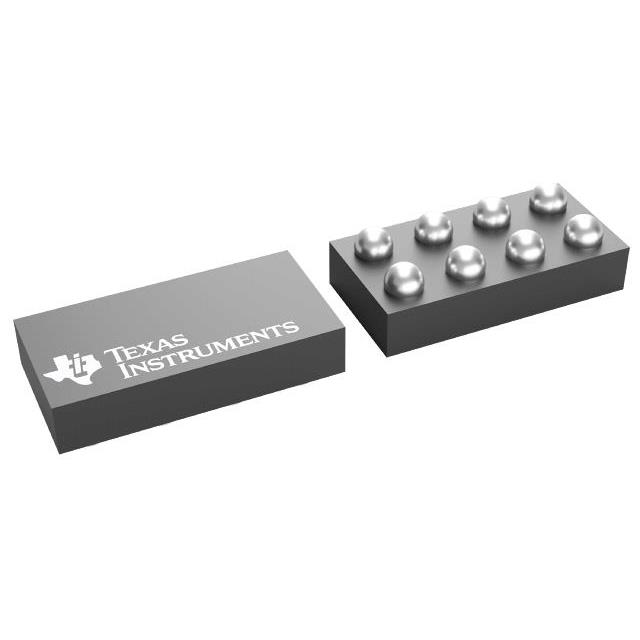

TPS22999YCHR Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
TPS22999YCHR
Product Number:
TPS22999YCHR
MFR Standard Lead Time:
12 Weeks
Package/Case:
8-XFBGA, DSBGA
Detailed Description:
IC
Datasheet:
Descnt:
Power Switch/Driver 1:1 N-Channel 1.5A 8-DSBGA (0.66x1.36)
In Stock
9400
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Switch Type
General Purpose
Number of Outputs
1
Ratio - Input:Output
1:1
Output Configuration
High Side
Output Type
N-Channel
Interface
On/Off
Voltage - Load
0.1V ~ 4.5V
Voltage - Supply (Vcc/Vdd)
2.3V ~ 5.5V
Current - Output (Max)
1.5A
Rds On (Typ)
7.5mOhm
Input Type
Non-Inverting
Features
Load Discharge, Power Good
Fault Protection
Over Temperature, UVLO
Operating Temperature
-40°C ~ 105°C (TA)
Grade
-
Qualification
-
Mounting Type
Surface Mount
Supplier Device Package
8-DSBGA (0.66x1.36)
Package / Case
8-XFBGA, DSBGA
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
12,000
