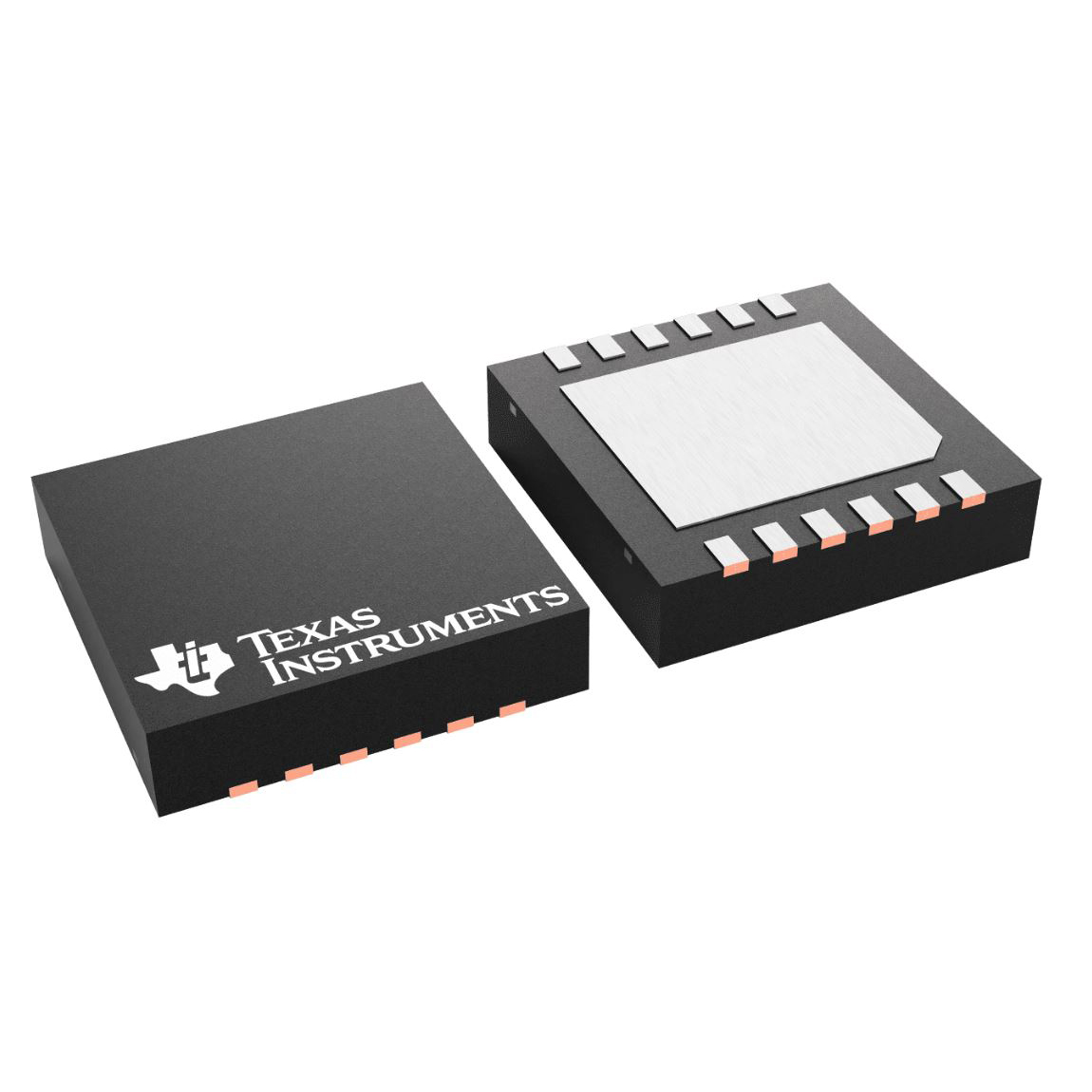

TPS281C100ADNTR Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
TPS281C100ADNTR
Product Number:
TPS281C100ADNTR
MFR Standard Lead Time:
12 Weeks
Package/Case:
12-WFDFN Exposed Pad
Detailed Description:
6-V TO 60-V, 100-M, 4.5-A SINGLE
Datasheet:
Descnt:
Power Switch/Driver 1:1 N-Channel 5A 12-WSON (4x4)
In Stock
4150
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Switch Type
General Purpose
Number of Outputs
1
Ratio - Input:Output
1:1
Output Configuration
High Side
Output Type
N-Channel
Interface
On/Off, PWM
Voltage - Load
6V ~ 60V
Voltage - Supply (Vcc/Vdd)
6V ~ 60V
Current - Output (Max)
5A
Rds On (Typ)
83mOhm
Input Type
Non-Inverting
Features
Load Discharge, Slew Rate Controlled, Status Flag
Fault Protection
Current Limiting (Fixed), Open Load Detect, Over Temperature, Short Circuit, UVLO
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Supplier Device Package
12-WSON (4x4)
Package / Case
12-WFDFN Exposed Pad
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2 (1 Year)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
5,000
