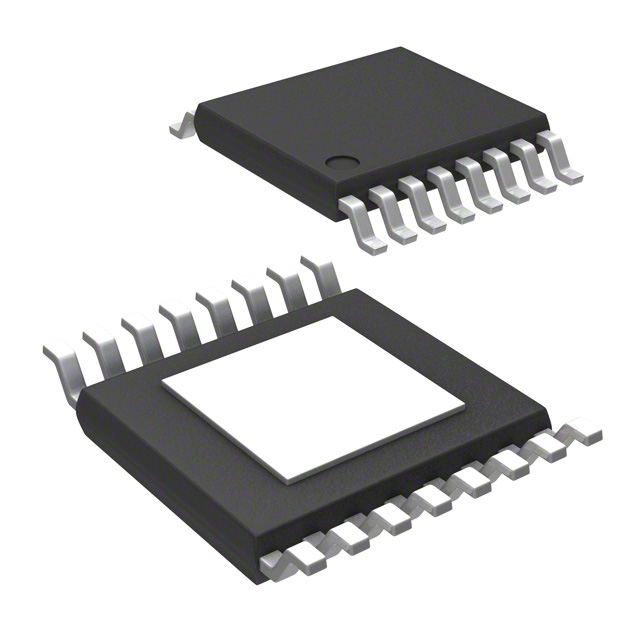

TPS2H000AQPWPRQ1 Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
TPS2H000AQPWPRQ1
Product Number:
TPS2H000AQPWPRQ1
MFR Standard Lead Time:
12 Weeks
Package/Case:
16-PowerTSSOP (0.173\, 4.40mm Width)
Detailed Description:
IC PWR SWTCH N-CHAN 1:1 16HTSSOP
Datasheet:
Descnt:
Power Switch/Driver 1:1 N-Channel 750mA 16-HTSSOP
In Stock
3457
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Switch Type
General Purpose
Number of Outputs
2
Ratio - Input:Output
1:1
Output Configuration
High Side
Output Type
N-Channel
Interface
On/Off
Voltage - Load
3.4V ~ 40V
Voltage - Supply (Vcc/Vdd)
Not Required
Current - Output (Max)
750mA
Rds On (Typ)
1Ohm
Input Type
-
Features
Status Flag
Fault Protection
Current Limiting (Adjustable), Over Temperature
Operating Temperature
-40°C ~ 125°C (TA)
Grade
Automotive
Qualification
AEC-Q100
Mounting Type
Surface Mount
Supplier Device Package
16-HTSSOP
Package / Case
16-PowerTSSOP (0.173", 4.40mm Width)
Base Product Number
TPS2H000
Documents & Media
PCN Design/Specification
Design 22/Feb/2022
TPS2H000-Q1 15/Mar/2018
Manufacturer Product Page
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
2,000
