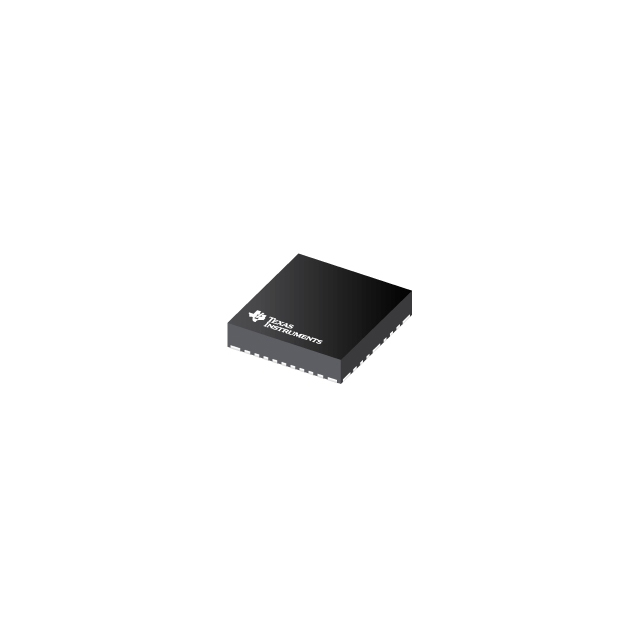

TPS53820RWZT Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
TPS53820RWZT
Product Number:
TPS53820RWZT
MFR Standard Lead Time:
18 Weeks
Package/Case:
35-PowerVQFN
Detailed Description:
IC REG BUCK ADJ 5.5A 35VQFN
Datasheet:
Descnt:
Buck Switching Regulator IC Positive Adjustable 1 Output 5.5A 35-PowerVQFN
In Stock
236
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Function
Step-Down
Output Configuration
Positive
Topology
Buck
Output Type
Adjustable
Number of Outputs
1
Voltage - Input (Min)
4.5V
Voltage - Input (Max)
15V
Voltage - Output (Min/Fixed)
-
Voltage - Output (Max)
-
Current - Output
5.5A
Frequency - Switching
800kHz ~ 2MHz
Synchronous Rectifier
No
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Package / Case
35-PowerVQFN
Supplier Device Package
35-VQFN-HR (5x5)
Base Product Number
TPS53820
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2 (1 Year)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
250
