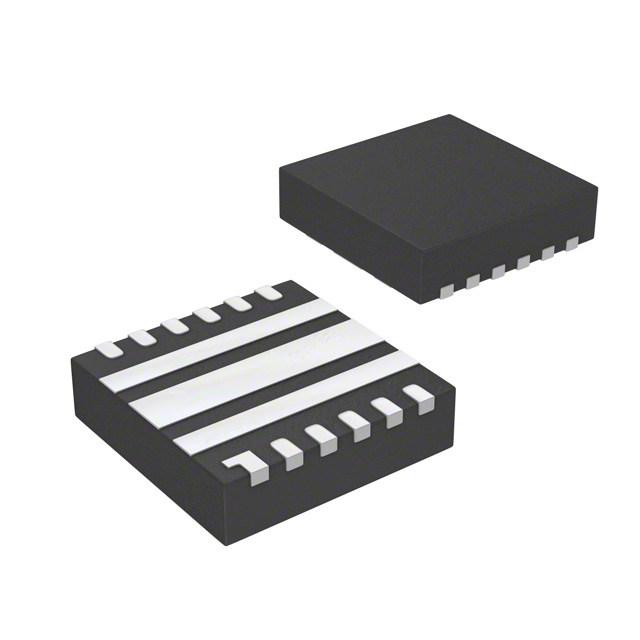

TPS54020RUWT Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
TPS54020RUWT
Product Number:
TPS54020RUWT
MFR Standard Lead Time:
6 Weeks
Package/Case:
15-VFQFN Exposed Pad
Detailed Description:
IC REG BUCK ADJ 10A 15VQFN
Datasheet:
Descnt:
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 10A 15-VFQFN Exposed Pad
In Stock
1569
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
SWIFT™, Eco-Mode™
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Function
Step-Down
Output Configuration
Positive
Topology
Buck
Output Type
Adjustable
Number of Outputs
1
Voltage - Input (Min)
4.5V
Voltage - Input (Max)
17V
Voltage - Output (Min/Fixed)
0.6V
Voltage - Output (Max)
5V
Current - Output
10A
Frequency - Switching
200kHz ~ 1.2MHz
Synchronous Rectifier
Yes
Operating Temperature
-40°C ~ 150°C (TA)
Mounting Type
Surface Mount
Package / Case
15-VFQFN Exposed Pad
Supplier Device Package
15-VQFN-HR (3.5x3.5)
Base Product Number
TPS54020
-
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS non-compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Affected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
250
