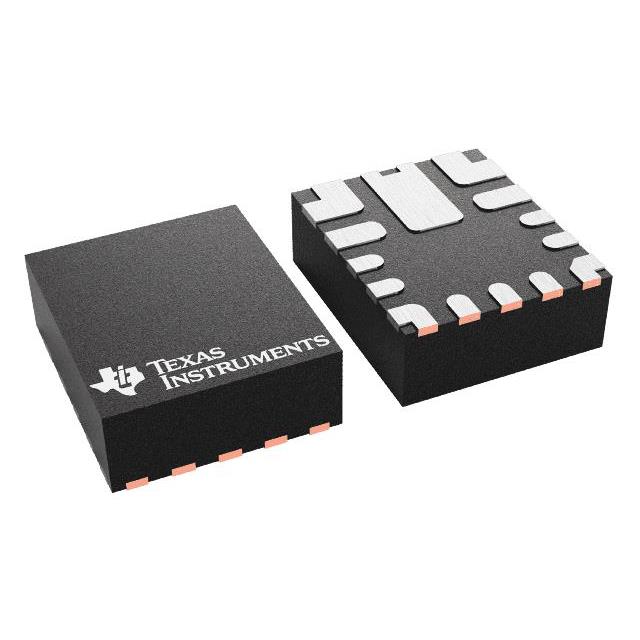

TPS543820RPYR-ET Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
TPS543820RPYR-ET
Product Number:
TPS543820RPYR-ET
MFR Standard Lead Time:
18 Weeks
Package/Case:
14-VFQFN
Detailed Description:
IC REG BUCK ADJ 8A 14VQFN
Datasheet:
Descnt:
Buck Switching Regulator IC Positive Adjustable 0.5V 1 Output 8A 14-VFQFN
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
SWIFT™
Packaging
Tape & Reel (TR)
Part Status
Active
Function
Step-Down
Output Configuration
Positive
Topology
Buck
Output Type
Adjustable
Number of Outputs
1
Voltage - Input (Min)
4V
Voltage - Input (Max)
18V
Voltage - Output (Min/Fixed)
0.5V
Voltage - Output (Max)
5.5V
Current - Output
8A
Frequency - Switching
400kHz ~ 2.6MHz
Synchronous Rectifier
Yes
Operating Temperature
-55°C ~ 150°C (TJ)
Mounting Type
Surface Mount
Package / Case
14-VFQFN
Supplier Device Package
14-VQFN-HR (2.5x3)
Base Product Number
TPS543820
-
Documents & Media
Environmental & Export Classifications
RoHS Status
Not applicable
Moisture Sensitivity Level (MSL)
2 (1 Year)
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
296-TPS543820RPYR-ETTR
Standard Package
3,000
