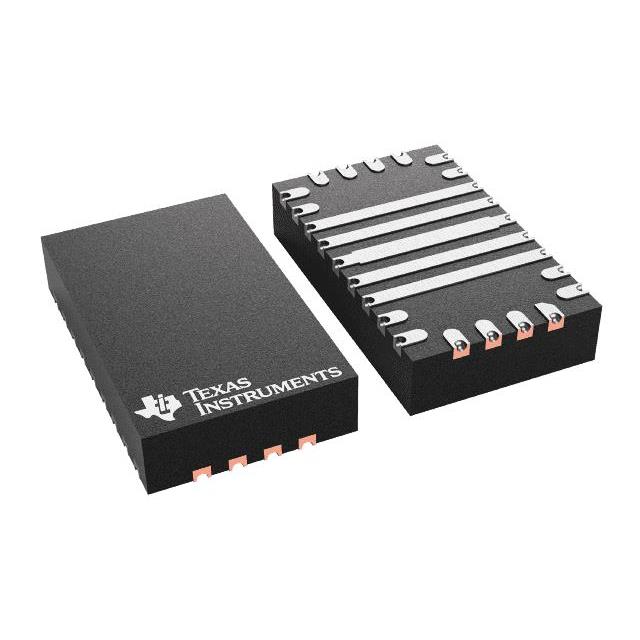

TPS55289RYQR Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
TPS55289RYQR
Product Number:
TPS55289RYQR
MFR Standard Lead Time:
6 Weeks
Package/Case:
21-PowerVFQFN
Detailed Description:
IC REG BUCK-BST ADJ 6.35A 21VQFN
Datasheet:
Descnt:
Buck-Boost Switching Regulator IC Positive Adjustable 0.8V 1 Output 6.35A (Switch) 21-PowerVFQFN
In Stock
5441
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Function
Step-Up/Step-Down
Output Configuration
Positive
Topology
Buck-Boost
Output Type
Adjustable
Number of Outputs
1
Voltage - Input (Min)
3V
Voltage - Input (Max)
30V
Voltage - Output (Min/Fixed)
0.8V
Voltage - Output (Max)
22V
Current - Output
6.35A (Switch)
Frequency - Switching
200kHz ~ 2.2MHz
Synchronous Rectifier
Yes
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
21-PowerVFQFN
Supplier Device Package
21-VQFN-HR (3x5)
Base Product Number
TPS55289
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2 (1 Year)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
