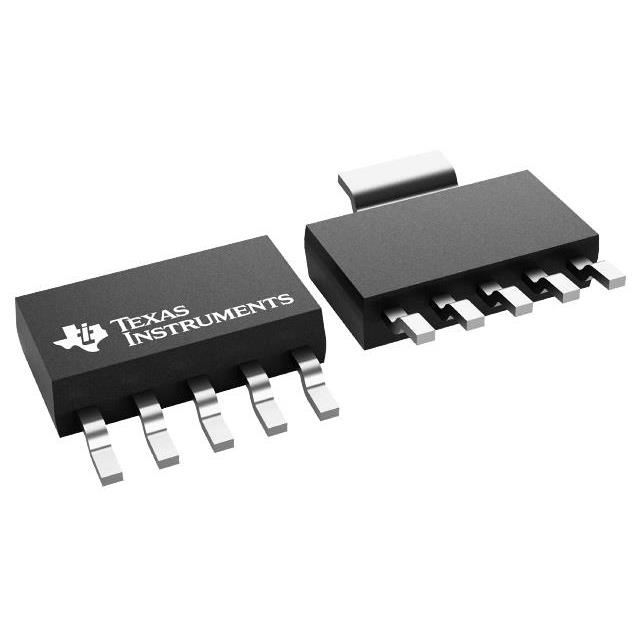

TPS73801MDCQPSEP Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
TPS73801MDCQPSEP
Product Number:
TPS73801MDCQPSEP
MFR Standard Lead Time:
Package/Case:
SOT-223-6
Detailed Description:
RADIATION-TOLERANT, 2.2-V TO 20-
Datasheet:
Descnt:
Linear Voltage Regulator IC Positive Adjustable 1 Output 1A SOT-223-6
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
-
Packaging
Tube
Part Status
Active
Output Configuration
Positive
Output Type
Adjustable
Number of Regulators
1
Voltage - Input (Max)
20V
Voltage - Output (Min/Fixed)
1.21V
Voltage - Output (Max)
20V
Voltage Dropout (Max)
0.4V 1A
Current - Output
1A
Current - Quiescent (Iq)
1.5 mA
Current - Supply (Max)
80 mA
PSRR
63dB (120Hz)
Control Features
Enable
Protection Features
Over Current, Over Temperature, Reverse Polarity
Operating Temperature
-55°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
SOT-223-6
Supplier Device Package
SOT-223-6
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2 (1 Year)
REACH Status
REACH Unaffected
-
Additional Resources
Other Names
296-TPS73801MDCQPSEP
Standard Package
1
