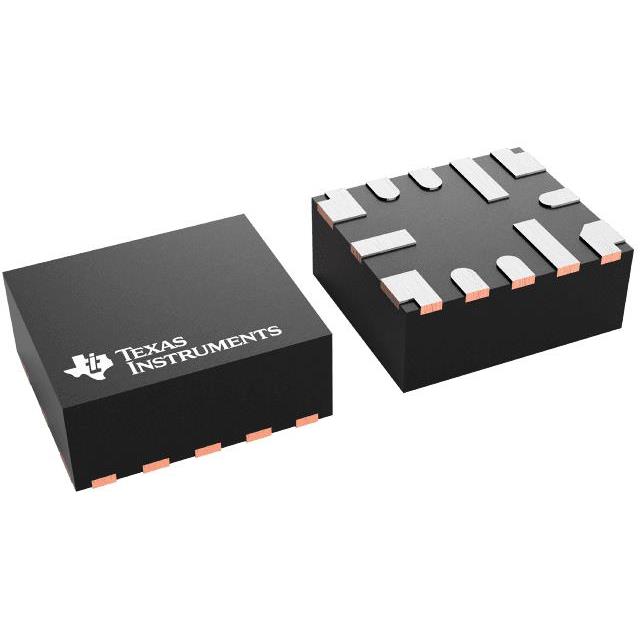

TPS7A5301BRPSR Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
TPS7A5301BRPSR
Product Number:
TPS7A5301BRPSR
MFR Standard Lead Time:
12 Weeks
Package/Case:
12-VFQFN
Detailed Description:
LINEAR & LOW-DROUPOUT (LDO) REGU
Datasheet:
Descnt:
Linear Voltage Regulator IC Positive Adjustable 1 Output 3A 12-VQFN-HR (2.2x2.5)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Output Configuration
Positive
Output Type
Adjustable
Number of Regulators
1
Voltage - Input (Max)
6.5V
Voltage - Output (Min/Fixed)
0.5V
Voltage - Output (Max)
5.15V
Voltage Dropout (Max)
0.375V 3A
Current - Output
3A
Current - Quiescent (Iq)
4.3 mA
Current - Supply (Max)
5.5 mA
PSRR
53dB ~ 48dB (10kHz ~ 500kHz)
Control Features
Current Limit, Enable, Power Good, Soft Start
Protection Features
Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature
-40°C ~ 125°C (TA)
Grade
-
Qualification
-
Mounting Type
Surface Mount
Package / Case
12-VFQFN
Supplier Device Package
12-VQFN-HR (2.2x2.5)
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2 (1 Year)
REACH Status
REACH Unaffected
-
Additional Resources
Other Names
Standard Package
3,000
