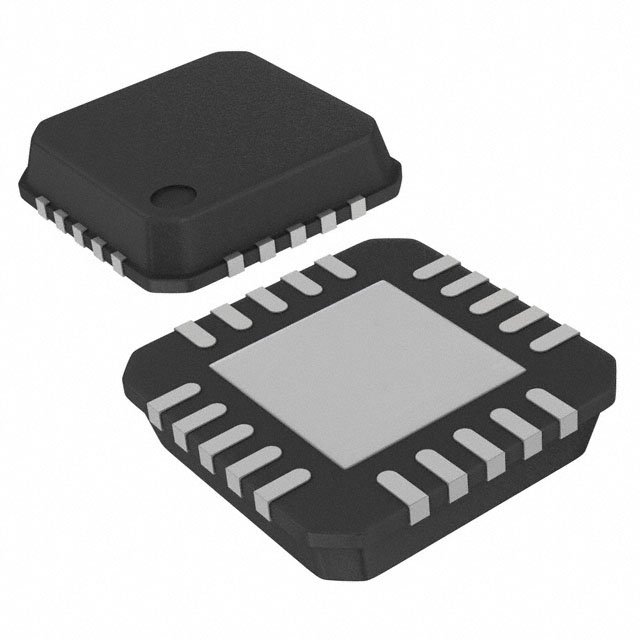

TPS7A5301WQRTKRQ1 Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
TPS7A5301WQRTKRQ1
Product Number:
TPS7A5301WQRTKRQ1
MFR Standard Lead Time:
6 Weeks
Package/Case:
20-VFQFN Exposed Pad
Detailed Description:
IC REG LINEAR POS ADJ 3A 20QFN
Datasheet:
Descnt:
Linear Voltage Regulator IC Positive Adjustable 1 Output 3A 20-QFN (4x4)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Part Status
Active
Output Configuration
Positive
Output Type
Adjustable
Number of Regulators
1
Voltage - Input (Max)
6.5V
Voltage - Output (Min/Fixed)
0.8V
Voltage - Output (Max)
5.15V
Voltage Dropout (Max)
0.515V 3A
Current - Output
3A
PSRR
42dB ~ 25dB (10kHz ~ 500kHz)
Control Features
Enable
Protection Features
Over Temperature, Reverse Polarity
Operating Temperature
-40°C ~ 150°C (TJ)
Grade
Automotive
Qualification
AEC-Q100
Mounting Type
Surface Mount
Package / Case
20-VFQFN Exposed Pad
Supplier Device Package
20-QFN (4x4)
Base Product Number
TPS7A5301
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2 (1 Year)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
