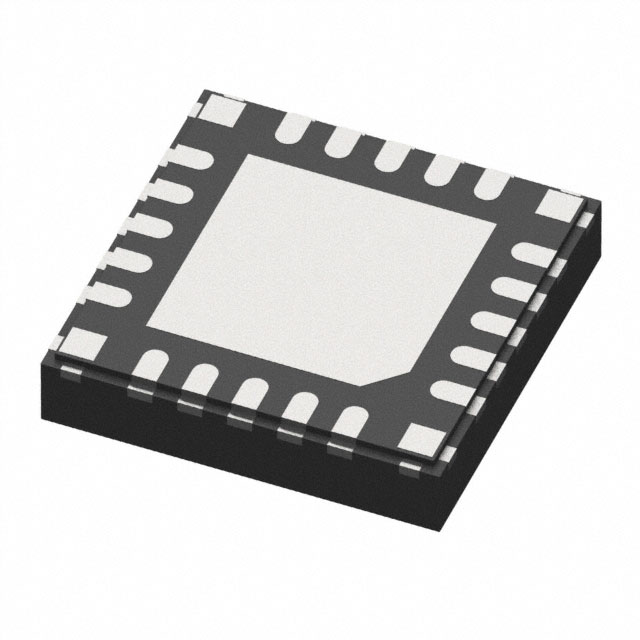

TPS7A8801QRTJRQ1 Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
TPS7A8801QRTJRQ1
Product Number:
TPS7A8801QRTJRQ1
MFR Standard Lead Time:
18 Weeks
Package/Case:
20-WFQFN Exposed Pad
Detailed Description:
IC REG LINEAR POS ADJ 1A 20WQFN
Datasheet:
Descnt:
Linear Voltage Regulator IC Positive Adjustable 2 Output 1A 20-WQFN (4x4)
In Stock
7800
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Output Configuration
Positive
Output Type
Adjustable
Number of Regulators
2
Voltage - Input (Max)
6.5V
Voltage - Output (Min/Fixed)
0.8V
Voltage - Output (Max)
5.15V
Voltage Dropout (Max)
0.225V 1A
Current - Output
1A
Current - Quiescent (Iq)
3.5 mA
Current - Supply (Max)
4 mA
PSRR
40dB (500kHz)
Control Features
Enable, Power Good, Soft Start
Protection Features
Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature
-40°C ~ 140°C (TJ)
Grade
Automotive
Qualification
AEC-Q100
Mounting Type
Surface Mount
Package / Case
20-WFQFN Exposed Pad
Supplier Device Package
20-WQFN (4x4)
Base Product Number
TPS7A8801
Documents & Media
Manufacturer Product Page
HTML Datasheet
LDOs Quick Reference Guide
TPS7A88-Q1 Datasheet
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2 (1 Year)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
