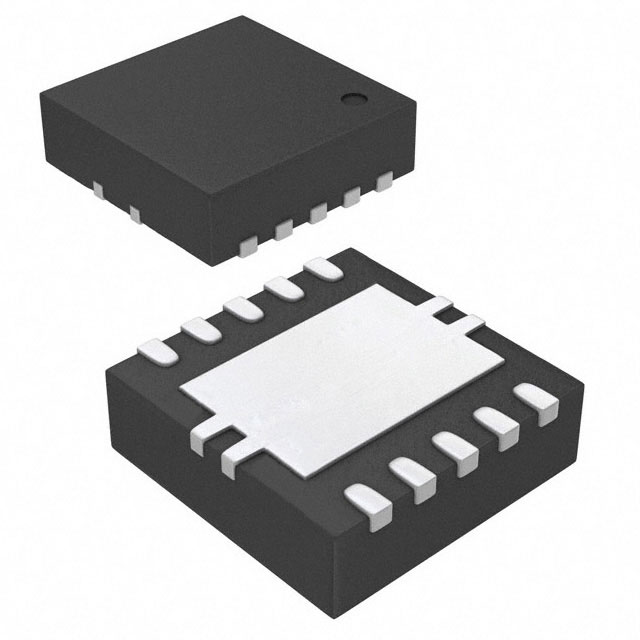

TPS7A9401DSCR Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
TPS7A9401DSCR
Product Number:
TPS7A9401DSCR
MFR Standard Lead Time:
18 Weeks
Package/Case:
10-WFDFN Exposed Pad
Detailed Description:
1-A, ULTRA-LOW NOISE, ULTRA-HIGH
Datasheet:
Descnt:
Linear Voltage Regulator IC Positive Adjustable 1 Output 1A 10-WSON (3x3)
In Stock
6554
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Output Configuration
Positive
Output Type
Adjustable
Number of Regulators
1
Voltage - Input (Max)
5.7V
Voltage - Output (Min/Fixed)
0V
Voltage - Output (Max)
5.5V
Voltage Dropout (Max)
0.24V 1A
Current - Output
1A
Current - Quiescent (Iq)
22 mA
Current - Supply (Max)
51 mA
PSRR
51dB (1MHz)
Control Features
Current Limit, Enable, Power Good, Soft Start
Protection Features
Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
10-WFDFN Exposed Pad
Supplier Device Package
10-WSON (3x3)
Base Product Number
TPS7A9401
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
