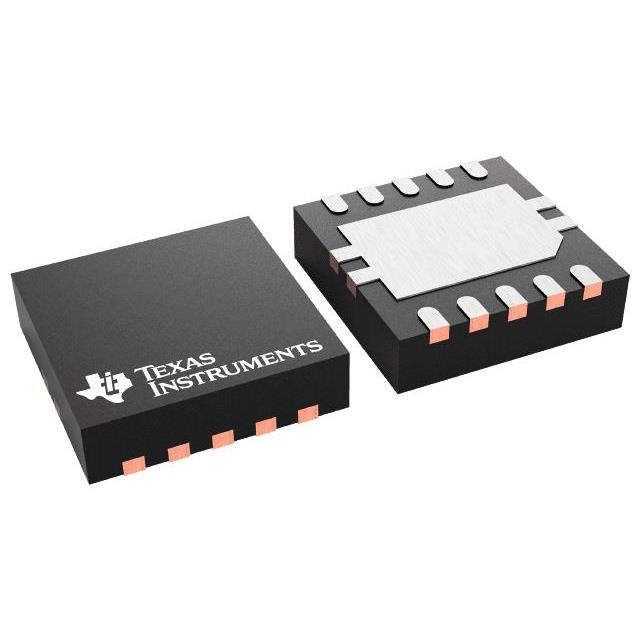

TPS7A9601DSCR Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
TPS7A9601DSCR
Product Number:
TPS7A9601DSCR
MFR Standard Lead Time:
18 Weeks
Package/Case:
10-WFDFN Exposed Pad
Detailed Description:
IC
Datasheet:
Descnt:
Linear Voltage Regulator IC Positive Adjustable 1 Output 2A 10-WSON (3x3)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Part Status
Active
Output Configuration
Positive
Output Type
Adjustable
Number of Regulators
1
Voltage - Input (Max)
5.7V
Voltage - Output (Min/Fixed)
0V
Voltage - Output (Max)
5.5V
Voltage Dropout (Max)
0.215V 2A
Current - Output
2A
Current - Quiescent (Iq)
22 mA
Current - Supply (Max)
59 mA
PSRR
102dB ~ 50dB (100Hz ~ 1MHz)
Control Features
Current Limit, Power Good, Soft Start
Protection Features
Over Current, Over Temperature
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
10-WFDFN Exposed Pad
Supplier Device Package
10-WSON (3x3)
-
Documents & Media
Additional Resources
Other Names
296-TPS7A9601DSCRTR
Standard Package
3,000
