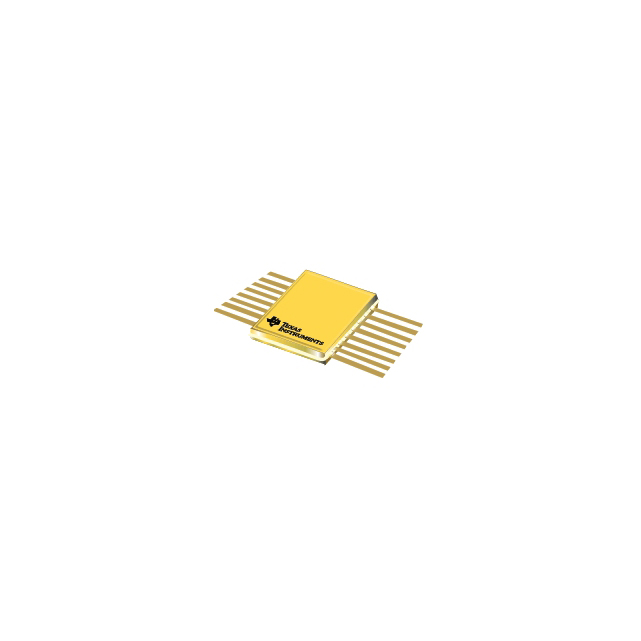

TPS7H1101AHKR/EM Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
TPS7H1101AHKR/EM
Product Number:
TPS7H1101AHKR-EM
MFR Standard Lead Time:
Package/Case:
16-CFlatPack
Detailed Description:
IC REG LINEAR POS ADJ 3A 16CFP
Datasheet:
Descnt:
Linear Voltage Regulator IC Positive Adjustable 1 Output 3A 16-CFP
In Stock
106
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
-
Packaging
Tube
Part Status
Active
Output Configuration
Positive
Output Type
Adjustable
Number of Regulators
1
Voltage - Input (Max)
7V
Voltage - Output (Min/Fixed)
0.8V
Voltage - Output (Max)
7V
Voltage Dropout (Max)
0.335V 3A
Current - Output
3A
Current - Quiescent (Iq)
16 mA
PSRR
48dB ~ 25dB (1kHz ~ 100kHz)
Control Features
Enable
Protection Features
Over Current, Over Temperature
Operating Temperature
-55°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
16-CFlatPack
Supplier Device Package
16-CFP
Base Product Number
TPS7H1101
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
296-TPS7H1101AHKR/EM
Standard Package
1
