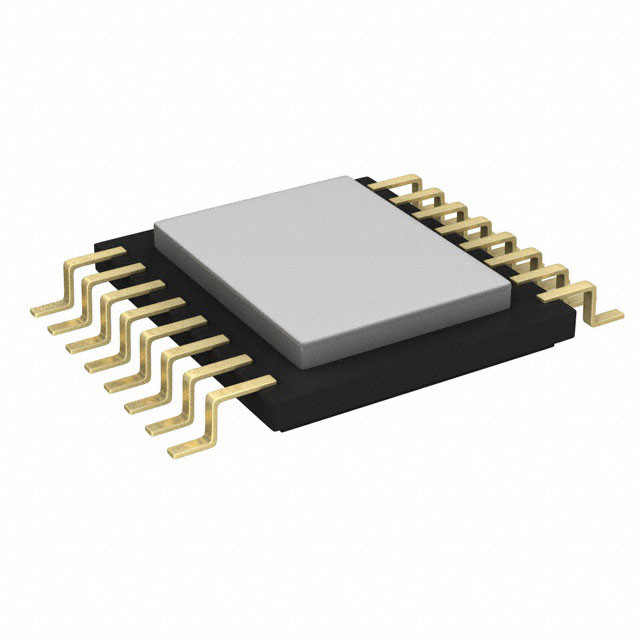

TPS7H1201SHKS Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
TPS7H1201SHKS
Product Number:
TPS7H1201SHKS
MFR Standard Lead Time:
Package/Case:
16-CFlatPack
Detailed Description:
IC REG LIN POS ADJ 500MA 16CFP
Datasheet:
Descnt:
Linear Voltage Regulator IC Positive Adjustable 1 Output 500mA 16-CFP
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
-
Packaging
Tray
Part Status
Obsolete
Output Configuration
Positive
Output Type
Adjustable
Number of Regulators
1
Voltage - Input (Max)
7V
Voltage - Output (Min/Fixed)
0.8V
Voltage - Output (Max)
6.8V
Voltage Dropout (Max)
0.1V 500mA
Current - Output
500mA
PSRR
45dB ~ 20dB (1kHz ~ 100kHz)
Control Features
Current Limit, Enable, Power Good, Soft Start
Protection Features
Over Current, Over Temperature
Operating Temperature
-55°C ~ 210°C
Mounting Type
Surface Mount
Package / Case
16-CFlatPack
Supplier Device Package
16-CFP
Base Product Number
TPS7H1201
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS non-compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Affected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
1
