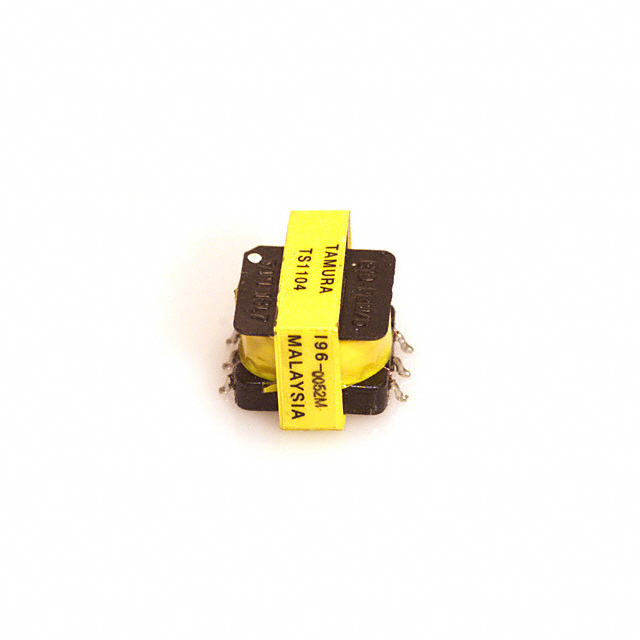

TS1104 Tamura
Favorite
Compare
Manufacturer:
Tamura
MFR Product Number:
TS1104
Product Number:
TS1104
MFR Standard Lead Time:
Package/Case:
Detailed Description:
AUDIO XFMR 600 / 600 SMD
Datasheet:
Descnt:
600 Impedance Primary Ohms 600 Impedance Secondary Ohms 1:1.06 Audio Transformer 300Hz ~ 3.5kHz Surface Mount
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Tamura
Series
-
Packaging
Tape & Reel (TR)
Part Status
Active
Turns Ratio - Primary:Secondary
1:1.06
Impedance - Primary (Ohms)
600
Impedance - Secondary (Ohms)
600
DC Resistance (DCR) - Primary
46Ohm
DC Resistance (DCR) - Secondary
63Ohm
Transformer Type
Data/Voice Coupling
Frequency Range
300Hz ~ 3.5kHz
Frequency Response
±0.5dB
Voltage - Isolation
1500VRMS 1 Minute
Insertion Loss
1.5dB Max 1kHz
Return Loss
26dB Min 1kHz
Power Level
-45dB ~ 7dB
Operating Temperature
-
Approval Agency
CSA-C22.2 No. 950-M89, UL1459, UL1950
Mounting Type
Surface Mount
Size / Dimension
0.791" L x 0.689" W (20.09mm x 17.50mm)
Height - Seated (Max)
0.500" (12.70mm)
Termination Style
Gull Wing
Weight
-
-
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8504.31.4035
Additional Resources
Other Names
Standard Package
1,200
