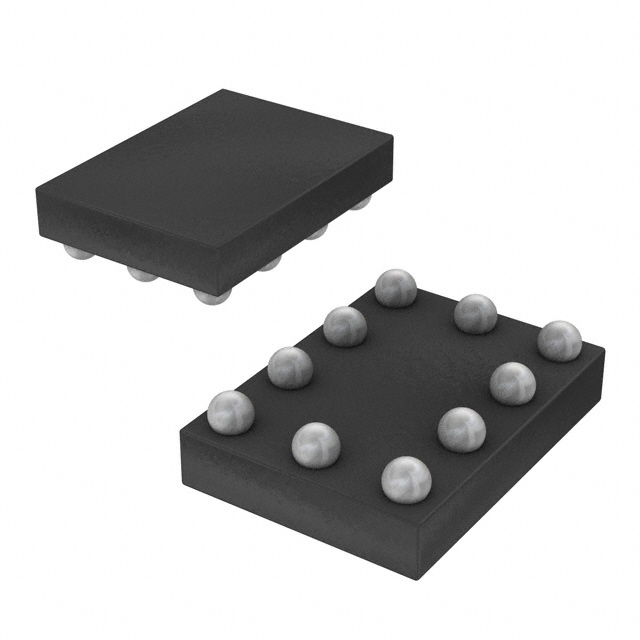

TS5A22364YZPR Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
TS5A22364YZPR
Product Number:
TS5A22364YZPR
MFR Standard Lead Time:
18 Weeks
Package/Case:
10-XFBGA, DSBGA
Detailed Description:
IC SWITCH SPDTX2 740MOHM 10DSBGA
Datasheet:
Descnt:
2 Circuit IC Switch 2:1 740mOhm 10-DSBGA
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Switch Circuit
SPDT
Multiplexer/Demultiplexer Circuit
2:1
Number of Circuits
2
On-State Resistance (Max)
740mOhm
Channel-to-Channel Matching (ΔRon)
40mOhm
Voltage - Supply, Single (V+)
2.3V ~ 5.5V
Voltage - Supply, Dual (V±)
-
Switch Time (Ton, Toff) (Max)
80ns, 70ns
-3db Bandwidth
18.3MHz
Charge Injection
10pC
Channel Capacitance (CS(off), CD(off))
70pF
Current - Leakage (IS(off)) (Max)
50nA
Crosstalk
-78dB 100kHz
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
10-XFBGA, DSBGA
Supplier Device Package
10-DSBGA
Base Product Number
TS5A22364
Documents & Media
PCN Design/Specification
TS5A22362/TS5A22364 07/Aug/2017
Datasheet Update 01/Jul/2015
Manufacturer Product Page
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
