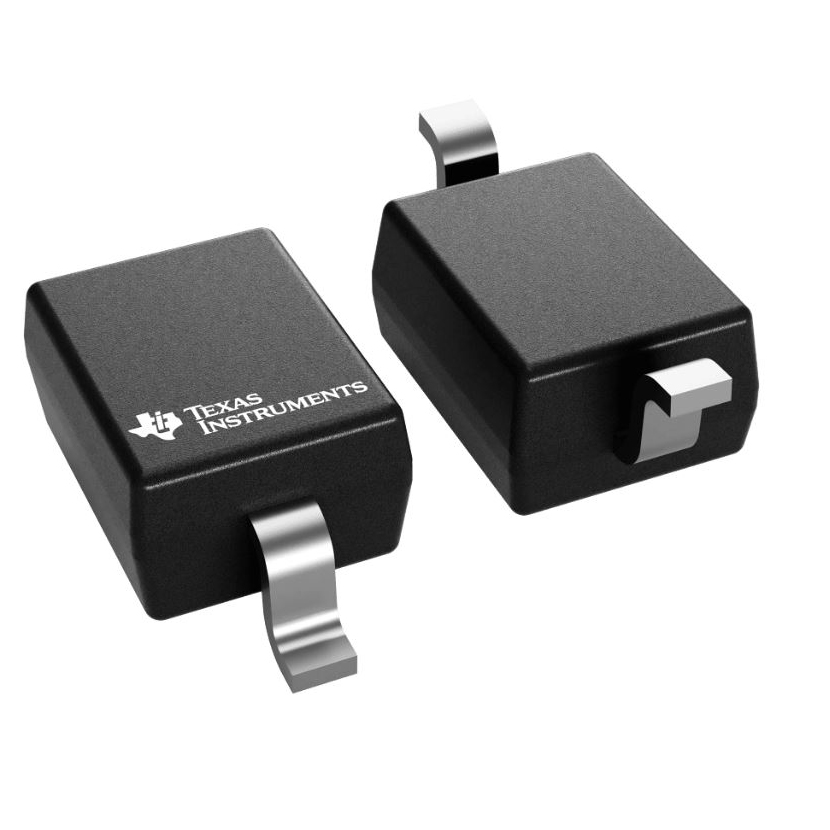

TSD05CDYFR Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
TSD05CDYFR
Product Number:
TSD05CDYFR
MFR Standard Lead Time:
12 Weeks
Package/Case:
SC-76, SOD-323
Detailed Description:
IC
Datasheet:
Descnt:
14V Clamp 30A (8/20µs) Ipp Tvs Diode Surface Mount SOD-323
In Stock
3109
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
Zener
Bidirectional Channels
1
Voltage - Reverse Standoff (Typ)
5.5V (Max)
Voltage - Breakdown (Min)
7V
Voltage - Clamping (Max) Ipp
14V
Current - Peak Pulse (10/1000µs)
30A (8/20µs)
Power - Peak Pulse
400W
Power Line Protection
No
Applications
USB
Capacitance Frequency
4pF 1MHz
Operating Temperature
-55°C ~ 150°C (TA)
Mounting Type
Surface Mount
Package / Case
SC-76, SOD-323
Supplier Device Package
SOD-323
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8541.10.0080
-
Additional Resources
Other Names
Standard Package
3,000
