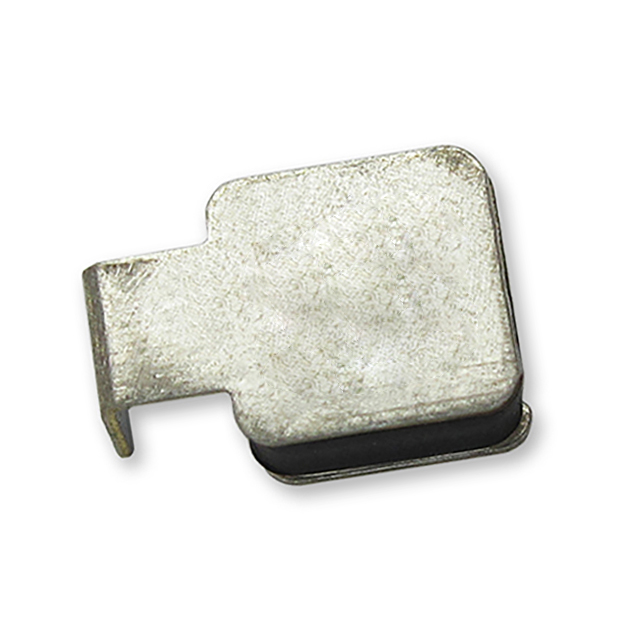

TSL250-080F-B-0.5-2 Littelfuse Inc.
Favorite
Compare
Manufacturer:
Littelfuse Inc.
MFR Product Number:
TSL250-080F-B-0.5-2
Product Number:
TSL250-080F-B-0-5-2
MFR Standard Lead Time:
Package/Case:
2-SMD
Detailed Description:
PTC RESET FUSE 80V 80MA 2SMD
Datasheet:
Descnt:
Polymeric PTC Resettable Fuse 80V (250V Int) 80 mA Ih Surface Mount 2-SMD
In Stock
743
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Littelfuse Inc.
Series
PolySwitch®, TSL250
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Type
Polymeric
Voltage - Max
80V (250V Int)
Current - Hold (Ih) (Max)
80 mA
Current - Trip (It)
240 mA
Current - Max
3 A
Time to Trip
1.6 s
Resistance - Initial (Ri) (Min)
5 Ohms
Resistance - Post Trip (R1) (Max)
20 Ohms
Operating Temperature
-40°C ~ 85°C
Ratings
-
Mounting Type
Surface Mount
Package / Case
2-SMD
Size / Dimension
0.287" L x 0.199" W (7.30mm x 5.05mm)
Height - Seated (Max)
-
Thickness (Max)
0.146" (3.70mm)
Lead Spacing
-
Approval Agency
CSA, TUV, UL
-
Documents & Media
Datasheets
Video File
Building Automation – Protect/Sense/Control
Basics of NTC and PTC Thermistors - Another Teaching Moment
HTML Datasheet
Telecom/Networking Devices Catalog
TSL250-080F-B-0.5-2 Spec
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8533.40.8070
Additional Resources
Other Names
Standard Package
1,500
