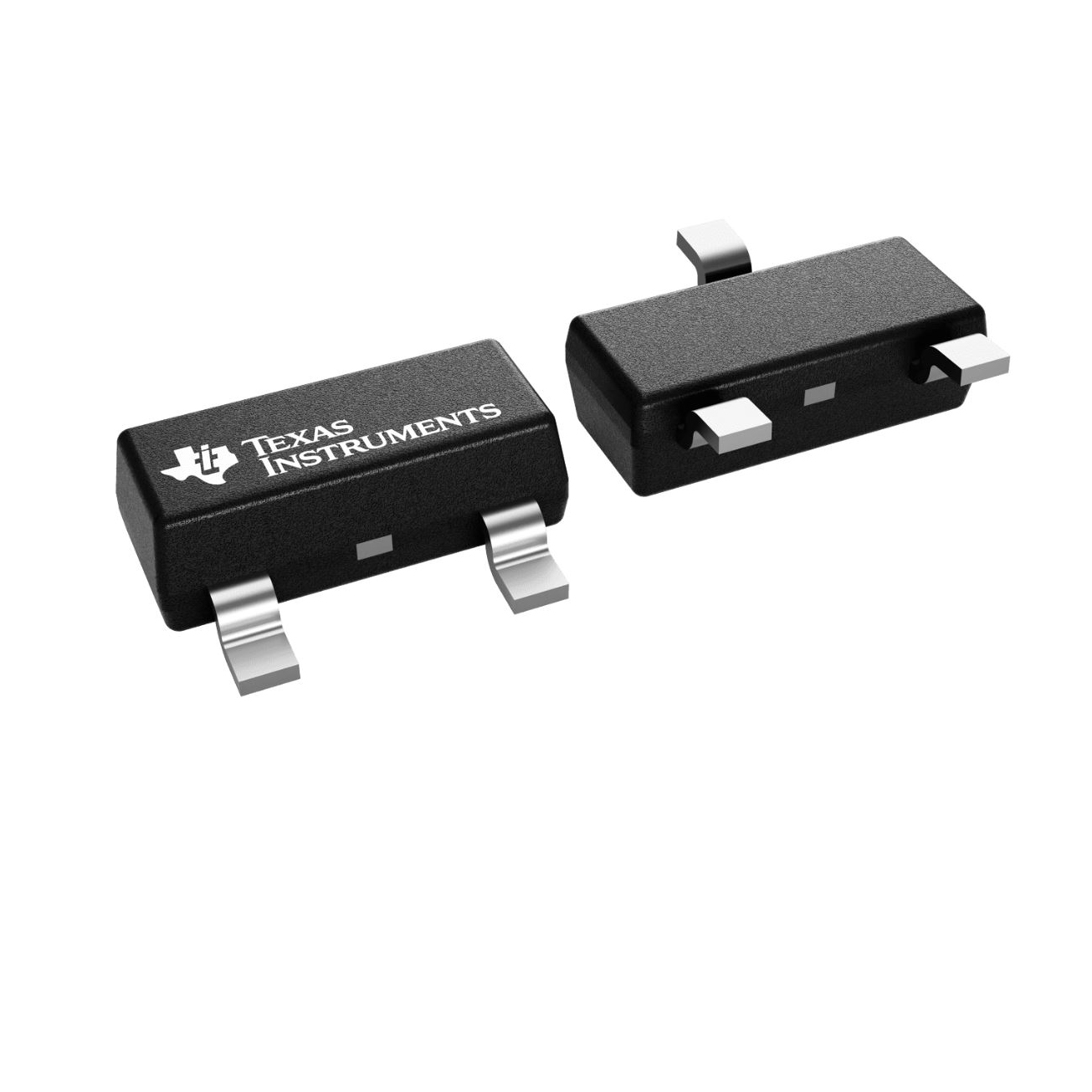

TSM24BDBZR Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
TSM24BDBZR
Product Number:
TSM24BDBZR
MFR Standard Lead Time:
12 Weeks
Package/Case:
TO-236-3, SC-59, SOT-23-3
Detailed Description:
24-V, 30-KV, UNIDIRECTIONAL SURG
Datasheet:
Descnt:
44V Clamp 20A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23-3
In Stock
3000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
Zener
Unidirectional Channels
2
Voltage - Reverse Standoff (Typ)
24V (Max)
Voltage - Breakdown (Min)
24.8V
Voltage - Clamping (Max) Ipp
44V
Current - Peak Pulse (10/1000µs)
20A (8/20µs)
Power - Peak Pulse
800W
Power Line Protection
No
Applications
CAN
Capacitance Frequency
24pF 1MHz
Operating Temperature
-40°C ~ 125°C (TA)
Mounting Type
Surface Mount
Package / Case
TO-236-3, SC-59, SOT-23-3
Supplier Device Package
SOT-23-3
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8541.10.0080
-
Additional Resources
Other Names
Standard Package
3,000
