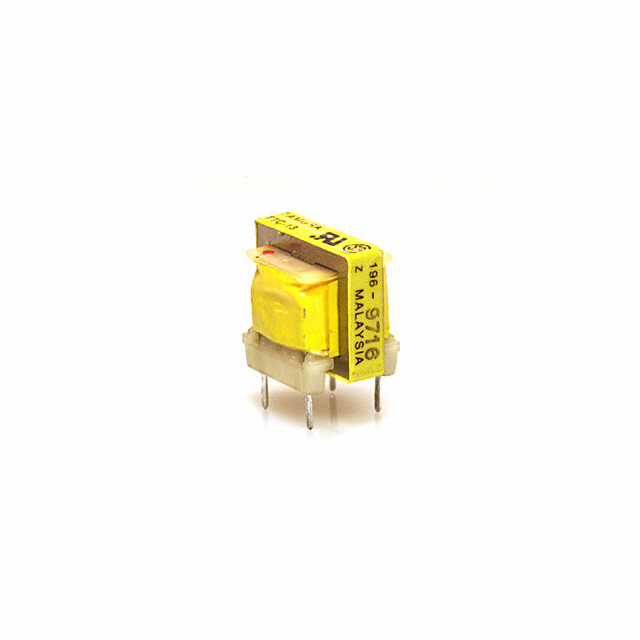

TTC-13 Tamura
Favorite
Compare
Manufacturer:
Tamura
MFR Product Number:
TTC-13
Product Number:
TTC-13
MFR Standard Lead Time:
26 Weeks
Package/Case:
Detailed Description:
AUDIO XFMR 4K / 600 TH
Datasheet:
Descnt:
4k Impedance Primary Ohms 600 Impedance Secondary Ohms 1:0.397 Audio Transformer 300Hz ~ 3.5kHz Through Hole
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Tamura
Series
TTC
Packaging
Bulk
Part Status
Active
Turns Ratio - Primary:Secondary
1:0.397
Impedance - Primary (Ohms)
4k
Impedance - Secondary (Ohms)
600
DC Resistance (DCR) - Primary
225Ohm
DC Resistance (DCR) - Secondary
45Ohm
Transformer Type
Data/Voice Coupling
Frequency Range
300Hz ~ 3.5kHz
Frequency Response
±0.5dB
Voltage - Isolation
1500VRMS 1 Minute
Insertion Loss
1.2dB Max 1kHz
Return Loss
-
Power Level
-45dB ~ 7dB
Operating Temperature
-
Approval Agency
CSA-C22.2 No. 66-M1988, UL1459
Mounting Type
Through Hole
Size / Dimension
0.799" L x 0.650" W (20.30mm x 16.50mm)
Height - Seated (Max)
0.736" (18.70mm)
Termination Style
PC Pin
Weight
-
-
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
ECCN
EAR99
HTSUS
8504.40.8500
Additional Resources
Other Names
Standard Package
560
