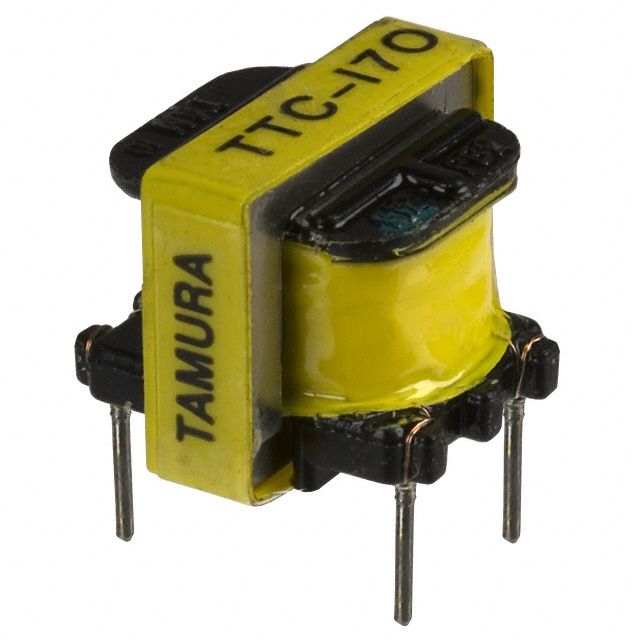

TTC-170 Tamura
Favorite
Compare
Manufacturer:
Tamura
MFR Product Number:
TTC-170
Product Number:
TTC-170
MFR Standard Lead Time:
26 Weeks
Package/Case:
Detailed Description:
AUDIO XFMR 600 / 600 TH
Datasheet:
Descnt:
600 Impedance Primary Ohms 600 Impedance Secondary Ohms 1:1 Audio Transformer 300Hz ~ 3.5kHz Through Hole
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Tamura
Series
TTC
Packaging
Tube
Part Status
Active
Turns Ratio - Primary:Secondary
1:1
Impedance - Primary (Ohms)
600
Impedance - Secondary (Ohms)
600
DC Resistance (DCR) - Primary
47Ohm
DC Resistance (DCR) - Secondary
61Ohm
Transformer Type
Data/Voice Coupling
Frequency Range
300Hz ~ 3.5kHz
Frequency Response
±0.5dB
Voltage - Isolation
1500VRMS 1 Minute
Insertion Loss
1.5dB Max 1kHz
Return Loss
-
Power Level
-
Operating Temperature
0°C ~ 70°C
Approval Agency
CSA-C22.2 No. 66-M1988, UL1459
Mounting Type
Through Hole
Size / Dimension
0.528" L x 0.512" W (13.40mm x 13.00mm)
Height - Seated (Max)
0.421" (10.70mm)
Termination Style
PC Pin
Weight
-
-
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
ECCN
EAR99
HTSUS
8504.31.2000
California Prop 65
<img class="warning_image" src="//media.digikey.com/Icons/warning%20sign.jpg"/> Warning Information
-
Additional Resources
Other Names
Standard Package
1,800
