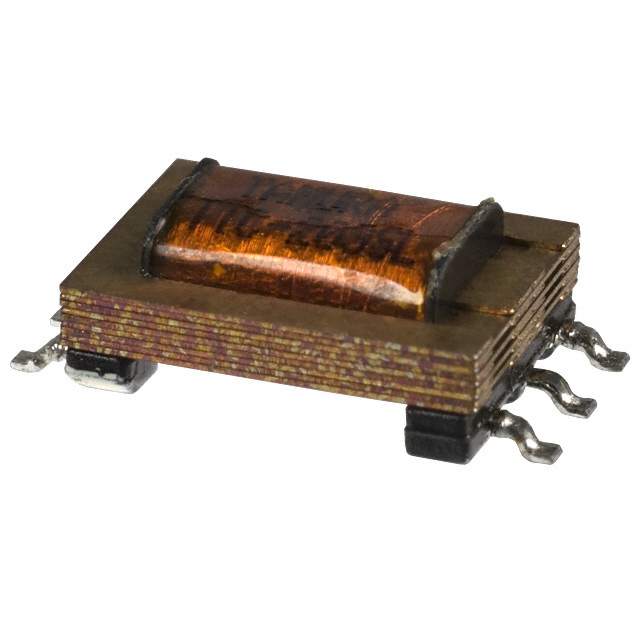

TTC-203SL Tamura
Favorite
Compare
Manufacturer:
Tamura
MFR Product Number:
TTC-203SL
Product Number:
TTC-203SL
MFR Standard Lead Time:
Package/Case:
Detailed Description:
AUDIO XFMR 600 / 346 SMD
Datasheet:
Descnt:
600 Impedance Primary Ohms 346 Impedance Secondary Ohms 1:1 Audio Transformer 300Hz ~ 3.5kHz Surface Mount
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Tamura
Series
TTC
Packaging
-
Part Status
Obsolete
Turns Ratio - Primary:Secondary
1:1
Impedance - Primary (Ohms)
600
Impedance - Secondary (Ohms)
346
DC Resistance (DCR) - Primary
127Ohm
DC Resistance (DCR) - Secondary
150Ohm
Transformer Type
Data/Voice Coupling
Frequency Range
300Hz ~ 3.5kHz
Frequency Response
-0.35dB ~ 0.15dB
Voltage - Isolation
1000VRMS 1 Minute
Insertion Loss
2.7dB 1kHz
Return Loss
25dB Min 300Hz ~ 3.5kHz
Power Level
10mW
Operating Temperature
-
Approval Agency
CSA-C22.2 No. 950-M89, UL1459, UL1950
Mounting Type
Surface Mount
Size / Dimension
0.330" L x 0.402" W (8.38mm x 10.20mm)
Height - Seated (Max)
0.164" (4.16mm)
Termination Style
Gull Wing
Weight
-
-
Documents & Media
Environmental & Export Classifications
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8504.40.8500
-
Additional Resources
Other Names
Standard Package
200
