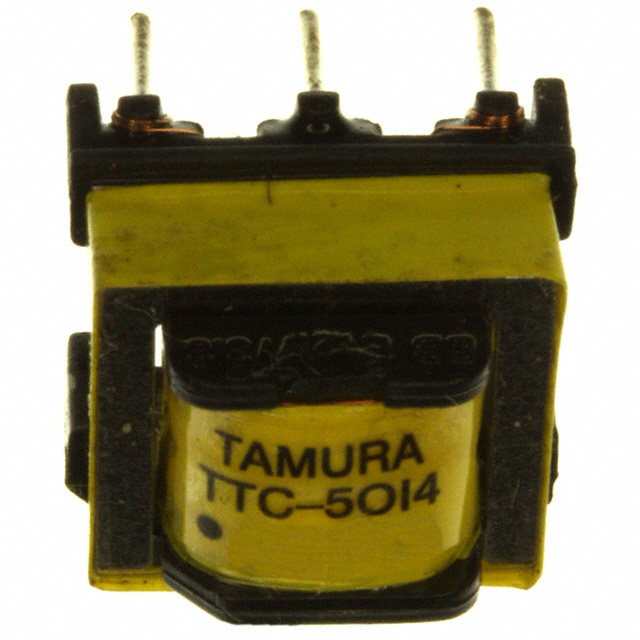

TTC-5014 Tamura
Favorite
Compare
Manufacturer:
Tamura
MFR Product Number:
TTC-5014
Product Number:
TTC-5014
MFR Standard Lead Time:
26 Weeks
Package/Case:
Detailed Description:
AUDIO XFMR 600 / 348 TH
Datasheet:
Descnt:
600 Impedance Primary Ohms 348 Impedance Secondary Ohms 1:1 Audio Transformer 200Hz ~ 4kHz Through Hole
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Tamura
Series
TTC
Packaging
Bulk
Part Status
Active
Turns Ratio - Primary:Secondary
1:1
Impedance - Primary (Ohms)
600
Impedance - Secondary (Ohms)
348
DC Resistance (DCR) - Primary
149Ohm
DC Resistance (DCR) - Secondary
139Ohm
Transformer Type
-
Frequency Range
200Hz ~ 4kHz
Frequency Response
±0.25dB
Voltage - Isolation
1875VRMS 1 Second
Insertion Loss
3.25dB Max 1kHz
Return Loss
14dB Min 200Hz ~ 4kHz
Power Level
-
Operating Temperature
-
Approval Agency
UL60950
Mounting Type
Through Hole
Size / Dimension
0.591" L x 0.571" W (15.00mm x 14.50mm)
Height - Seated (Max)
0.472" (12.00mm)
Termination Style
PC Pin
Weight
-
-
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
ECCN
EAR99
HTSUS
8504.40.8500
Additional Resources
Other Names
Standard Package
400
