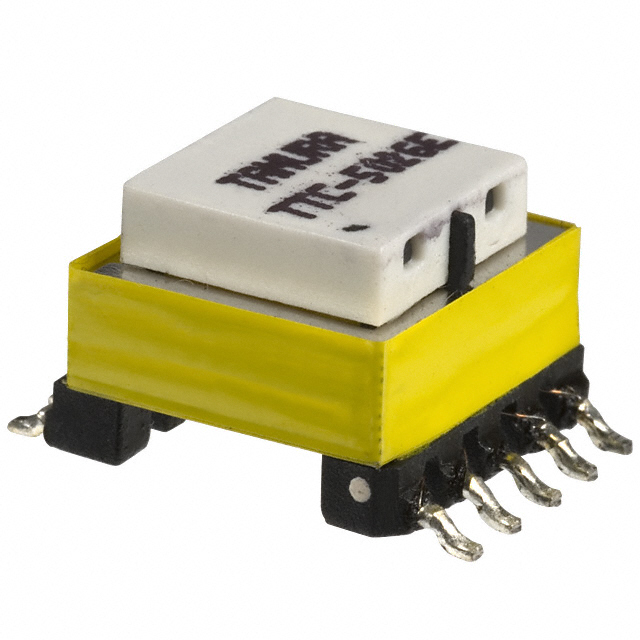

TTC-5026 Tamura
Favorite
Compare
Manufacturer:
Tamura
MFR Product Number:
TTC-5026
Product Number:
TTC-5026
MFR Standard Lead Time:
Package/Case:
Detailed Description:
AUDIO XFMR 600 / 490CT SMD
Datasheet:
Descnt:
600 Impedance Primary Ohms 490CT Impedance Secondary Ohms 1:1 Audio Transformer 300Hz ~ 3.5kHz Surface Mount
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Tamura
Series
TTC
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Turns Ratio - Primary:Secondary
1:1
Impedance - Primary (Ohms)
600
Impedance - Secondary (Ohms)
490CT
DC Resistance (DCR) - Primary
23.8Ohm
DC Resistance (DCR) - Secondary
47.8Ohm
Transformer Type
Data/Voice Coupling
Frequency Range
300Hz ~ 3.5kHz
Frequency Response
±0.3dB
Voltage - Isolation
1875VRMS 1 Second
Insertion Loss
1.5dB Max 1kHz
Return Loss
-
Power Level
-
Operating Temperature
-
Approval Agency
UL1950, UL60950
Mounting Type
Surface Mount
Size / Dimension
0.532" L x 0.551" W (13.50mm x 14.00mm)
Height - Seated (Max)
0.409" (10.40mm)
Termination Style
Gull Wing
Weight
-
-
Documents & Media
Environmental & Export Classifications
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8504.40.8500
-
Additional Resources
Other Names
Standard Package
250
