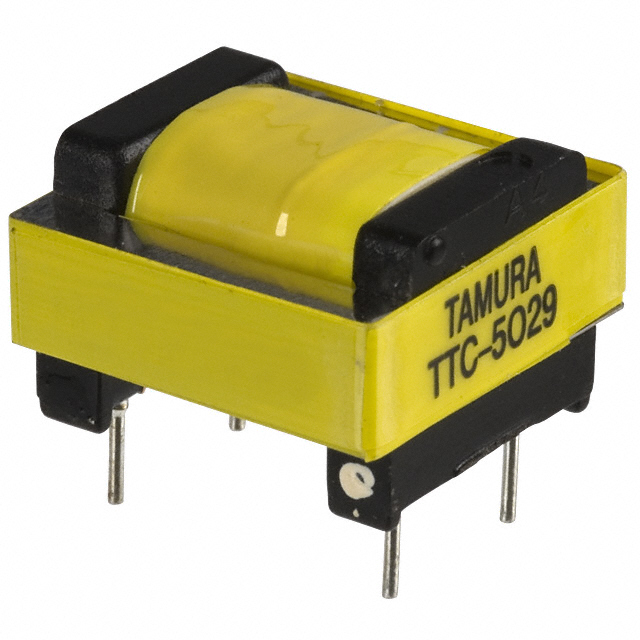

TTC-5029 Tamura
Favorite
Compare
Manufacturer:
Tamura
MFR Product Number:
TTC-5029
Product Number:
TTC-5029
MFR Standard Lead Time:
26 Weeks
Package/Case:
Detailed Description:
AUDIO XFMR 600 / 600 TH
Datasheet:
Descnt:
600 Impedance Primary Ohms 600 Impedance Secondary Ohms 1:1 Audio Transformer 200Hz ~ 4kHz Through Hole
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Tamura
Series
TTC
Packaging
Bulk
Part Status
Active
Turns Ratio - Primary:Secondary
1:1
Impedance - Primary (Ohms)
600
Impedance - Secondary (Ohms)
600
DC Resistance (DCR) - Primary
40Ohm
DC Resistance (DCR) - Secondary
40Ohm
Transformer Type
Data/Voice Coupling
Frequency Range
200Hz ~ 4kHz
Frequency Response
±0.2dB
Voltage - Isolation
1875VRMS 1 Second
Insertion Loss
1dB Max 1kHz
Return Loss
20dB Min 200Hz ~ 4kHz
Power Level
-
Operating Temperature
0°C ~ 70°C
Approval Agency
-
Mounting Type
Through Hole
Size / Dimension
0.669" L x 0.669" W (17.00mm x 17.00mm)
Height - Seated (Max)
0.472" (12.00mm)
Termination Style
PC Pin
Weight
-
-
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
ECCN
EAR99
HTSUS
8504.40.8500
California Prop 65
<img class="warning_image" src="//media.digikey.com/Icons/warning%20sign.jpg"/> Warning Information
-
Additional Resources
Other Names
Standard Package
100
