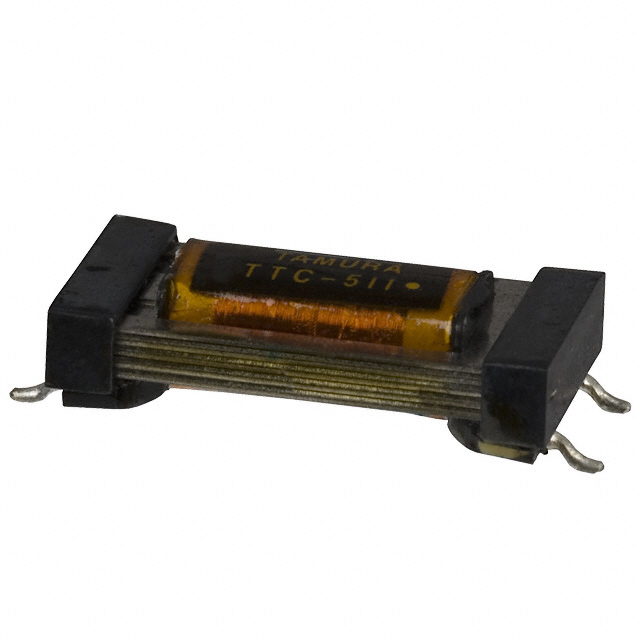

TTC-511 Tamura
Favorite
Compare
Manufacturer:
Tamura
MFR Product Number:
TTC-511
Product Number:
TTC-511
MFR Standard Lead Time:
Package/Case:
Detailed Description:
AUDIO XFMR 600 / 287 SMD
Datasheet:
Descnt:
600 Impedance Primary Ohms 287 Impedance Secondary Ohms 1:1 Audio Transformer 300Hz ~ 3.5kHz Surface Mount
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Tamura
Series
TTC
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Turns Ratio - Primary:Secondary
1:1
Impedance - Primary (Ohms)
600
Impedance - Secondary (Ohms)
287
DC Resistance (DCR) - Primary
150Ohm
DC Resistance (DCR) - Secondary
175Ohm
Transformer Type
-
Frequency Range
300Hz ~ 3.5kHz
Frequency Response
±0.2dB
Voltage - Isolation
1875VRMS 1 Second
Insertion Loss
3.8dB Max 1kHz
Return Loss
25dB Min 300Hz ~ 3.5kHz
Power Level
-
Operating Temperature
-
Approval Agency
UL1950, UL60950
Mounting Type
Surface Mount
Size / Dimension
0.390" L x 0.701" W (9.90mm x 17.80mm)
Height - Seated (Max)
0.193" (4.90mm)
Termination Style
Gull Wing
Weight
-
-
Documents & Media
Environmental & Export Classifications
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8504.40.8500
-
Additional Resources
Other Names
Standard Package
800
