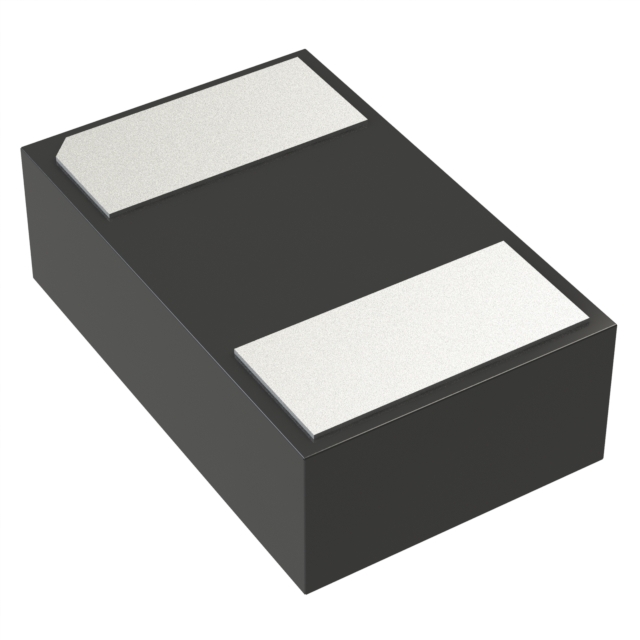

TVS5501V10MUT5G onsemi
Favorite
Compare
Manufacturer:
onsemi
MFR Product Number:
TVS5501V10MUT5G
Product Number:
TVS5501V10MUT5G
MFR Standard Lead Time:
Package/Case:
2-UDFN
Detailed Description:
TVS DIODE 10VWM 20VC 2UDFN
Datasheet:
Descnt:
20V Clamp 60A (8/20µs) Ipp Tvs Diode Surface Mount 2-UDFN (1.6x1)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
onsemi
Series
-
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Type
Zener
Unidirectional Channels
1
Voltage - Reverse Standoff (Typ)
10V (Max)
Voltage - Breakdown (Min)
12V
Voltage - Clamping (Max) Ipp
20V
Current - Peak Pulse (10/1000µs)
60A (8/20µs)
Power - Peak Pulse
-
Power Line Protection
No
Applications
General Purpose
Capacitance Frequency
400pF 1MHz (Max)
Operating Temperature
-65°C ~ 150°C (TJ)
Mounting Type
Surface Mount
Package / Case
2-UDFN
Supplier Device Package
2-UDFN (1.6x1)
Base Product Number
TVS5501
-
Documents & Media
Environmental Information
onsemi RoHS
Material Declaration TVS5501V10MUT5G
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8541.10.0080
-
Additional Resources
Other Names
2832-TVS5501V10MUT5GTR
Standard Package
8,000
