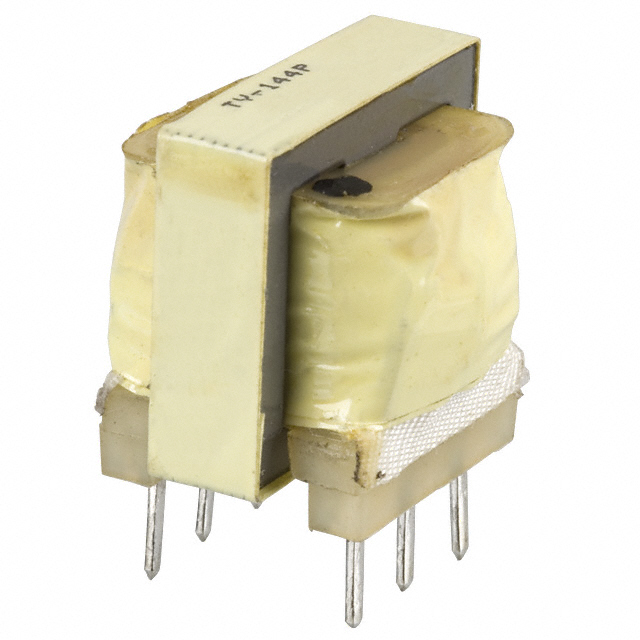

TY-144P Triad Magnetics
Favorite
Compare
Manufacturer:
Triad Magnetics
MFR Product Number:
TY-144P
Product Number:
TY-144P
MFR Standard Lead Time:
23 Weeks
Package/Case:
Detailed Description:
AUDIO XFMR 15KCT / 15KCT TH
Datasheet:
Descnt:
15kCT Impedance Primary Ohms 15kCT Impedance Secondary Ohms 1:1 Audio Transformer 200Hz ~ 15kHz Through Hole
In Stock
180
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Triad Magnetics
Series
TY
Packaging
Bulk
Part Status
Active
Turns Ratio - Primary:Secondary
1:1
Impedance - Primary (Ohms)
15kCT
Impedance - Secondary (Ohms)
15kCT
DC Resistance (DCR) - Primary
1.18kOhm
DC Resistance (DCR) - Secondary
1.6kOhm
Transformer Type
Data/Voice Coupling
Frequency Range
200Hz ~ 15kHz
Frequency Response
±2dB
Voltage - Isolation
1500V
Insertion Loss
1.5dB
Return Loss
26dB
Power Level
100mW
Operating Temperature
-20°C ~ 85°C
Approval Agency
-
Mounting Type
Through Hole
Size / Dimension
0.812" L x 0.700" W (20.62mm x 17.78mm)
Height - Seated (Max)
0.740" (18.80mm)
Termination Style
PC Pin
Weight
0.032 lb (14.51 g)
-
Documents & Media
Product Drawings
TY-14xP
TY-14xP Schematic
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
Standard Package
1
