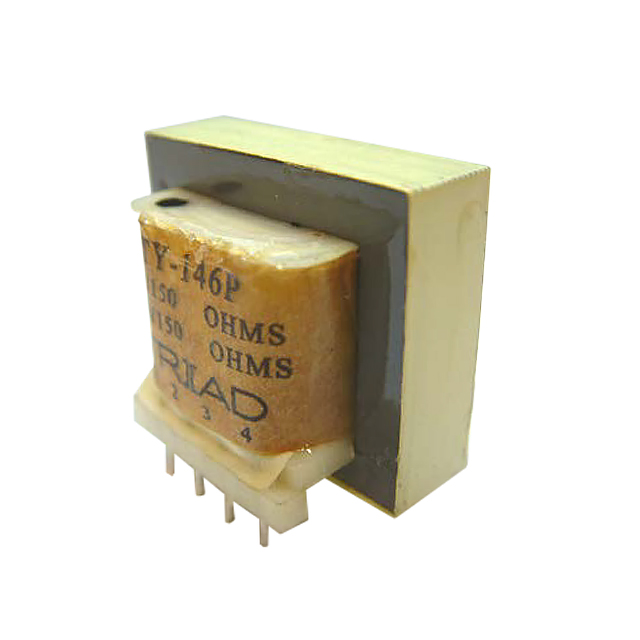

TY-146P-B Triad Magnetics
Favorite
Compare
Manufacturer:
Triad Magnetics
MFR Product Number:
TY-146P-B
Product Number:
TY-146P-B
MFR Standard Lead Time:
21 Weeks
Package/Case:
Detailed Description:
XFMR 600 150/150 / 600 150/150
Datasheet:
Descnt:
600, 150/150 Impedance Primary Ohms 600, 150/150 Impedance Secondary Ohms 1:1 Audio Transformer 200Hz ~ 15kHz Through Hole
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Triad Magnetics
Series
TY
Packaging
Bulk
Part Status
Active
Turns Ratio - Primary:Secondary
1:1
Impedance - Primary (Ohms)
600, 150/150
Impedance - Secondary (Ohms)
600, 150/150
DC Resistance (DCR) - Primary
17Ohm, 19Ohm
DC Resistance (DCR) - Secondary
14.5Ohm, 22Ohm
Transformer Type
Data/Voice Coupling
Frequency Range
200Hz ~ 15kHz
Frequency Response
±2dB
Voltage - Isolation
1500V
Insertion Loss
1.5dB 1kHz
Return Loss
26dB
Power Level
-
Operating Temperature
-20°C ~ 85°C
Approval Agency
-
Mounting Type
Through Hole
Size / Dimension
1.375" L x 1.187" W (34.93mm x 30.15mm)
Height - Seated (Max)
1.187" (30.15mm)
Termination Style
PC Pin
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Standard Package
96
-
