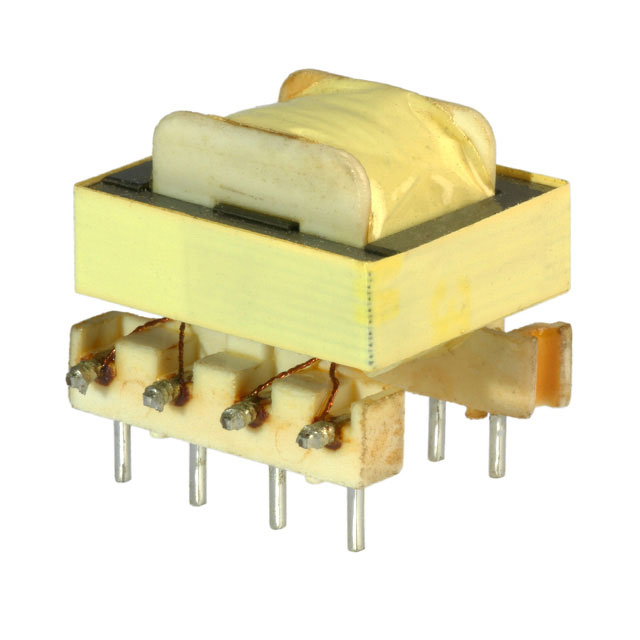

TY-250P Triad Magnetics
Favorite
Compare
Manufacturer:
Triad Magnetics
MFR Product Number:
TY-250P
Product Number:
TY-250P
MFR Standard Lead Time:
23 Weeks
Package/Case:
Detailed Description:
AUDIO XFMR 1KCT / 1KCT TH
Datasheet:
Descnt:
1kCT Impedance Primary Ohms 1kCT Impedance Secondary Ohms 1:1, 2:1 Audio Transformer 20Hz ~ 20kHz Through Hole
In Stock
1617
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Triad Magnetics
Series
TY
Packaging
Box
Part Status
Active
Turns Ratio - Primary:Secondary
1:1, 2:1
Impedance - Primary (Ohms)
1kCT
Impedance - Secondary (Ohms)
1kCT
DC Resistance (DCR) - Primary
172Ohm
DC Resistance (DCR) - Secondary
172Ohm
Transformer Type
Impedance Matching
Frequency Range
20Hz ~ 20kHz
Frequency Response
±1dB
Voltage - Isolation
1500VAC
Insertion Loss
2.8dB Max 1kHz
Return Loss
-
Power Level
-
Operating Temperature
-40°C ~ 105°C
Approval Agency
-
Mounting Type
Through Hole
Size / Dimension
0.800" L x 0.770" W (20.32mm x 19.56mm)
Height - Seated (Max)
0.700" (17.78mm)
Termination Style
PC Pin
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Standard Package
1
-
