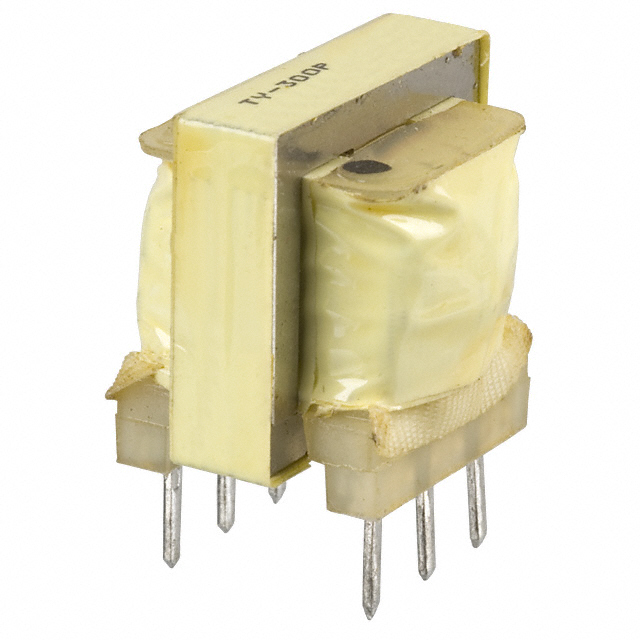

TY-300P-B Triad Magnetics
Favorite
Compare
Manufacturer:
Triad Magnetics
MFR Product Number:
TY-300P-B
Product Number:
TY-300P-B
MFR Standard Lead Time:
21 Weeks
Package/Case:
Detailed Description:
AUDIO XFMR 600 / 600/600 TH
Datasheet:
Descnt:
600 Impedance Primary Ohms 600/600 Impedance Secondary Ohms 1:2.48 Audio Transformer 300Hz ~ 3.5kHz Through Hole
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Triad Magnetics
Series
TY
Packaging
Bulk
Part Status
Active
Turns Ratio - Primary:Secondary
1:2.48
Impedance - Primary (Ohms)
600
Impedance - Secondary (Ohms)
600/600
DC Resistance (DCR) - Primary
172Ohm
DC Resistance (DCR) - Secondary
66Ohm, 66Ohm
Transformer Type
Data/Voice Coupling
Frequency Range
300Hz ~ 3.5kHz
Frequency Response
-
Voltage - Isolation
1500VAC
Insertion Loss
0.8dB Typ
Return Loss
30dB Typ
Power Level
-45dB ~ 7dB
Operating Temperature
-20°C ~ 85°C
Approval Agency
-
Mounting Type
Through Hole
Size / Dimension
0.812" L x 0.700" W (20.62mm x 17.78mm)
Height - Seated (Max)
0.740" (18.80mm)
Termination Style
PC Pin
Weight
-
-
Documents & Media
Product Drawings
TY-300P, 302P Schematic
TY-30xP, 31xP
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
Q11880167C
Standard Package
1
