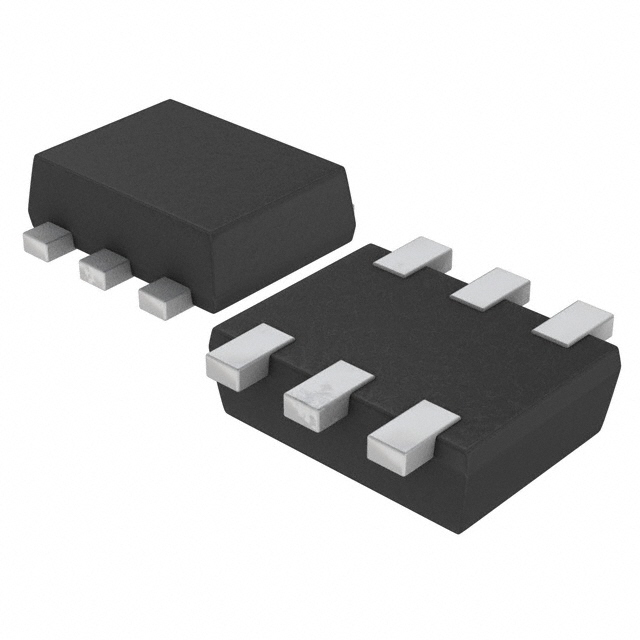

UAT56A05L05 YAGEO
Favorite
Compare
Manufacturer:
YAGEO
MFR Product Number:
UAT56A05L05
Product Number:
UAT56A05L05
MFR Standard Lead Time:
34 Weeks
Package/Case:
SOT-563, SOT-666
Detailed Description:
TVS ESD, SOT-563, 5V, 15V, REEL
Datasheet:
Descnt:
15V Clamp 2A (8/20µs) Ipp Tvs Diode Surface Mount SOT-563
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
YAGEO
Series
UAT56A05L05
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
Steering (Rail to Rail)
Unidirectional Channels
4
Voltage - Reverse Standoff (Typ)
5V (Max)
Voltage - Breakdown (Min)
6V
Voltage - Clamping (Max) Ipp
15V
Current - Peak Pulse (10/1000µs)
2A (8/20µs)
Power - Peak Pulse
-
Power Line Protection
Yes
Applications
Ethernet, USB
Capacitance Frequency
1pF 1MHz
Operating Temperature
-55°C ~ 150°C (TJ)
Mounting Type
Surface Mount
Package / Case
SOT-563, SOT-666
Supplier Device Package
SOT-563
Documents & Media
Environmental & Export Classifications
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8541.10.0080
-
Additional Resources
Other Names
Standard Package
3,000
