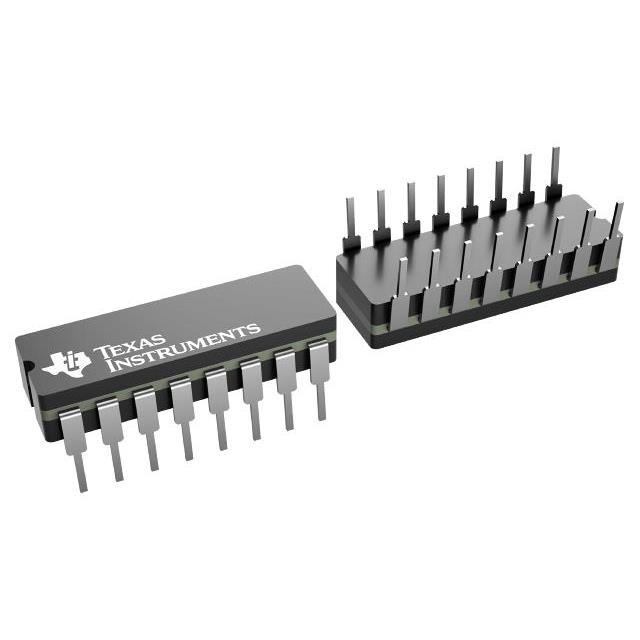

UC2834J Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
UC2834J
Product Number:
UC2834J
MFR Standard Lead Time:
Package/Case:
16-CDIP (0.300\, 7.62mm)
Detailed Description:
HIGH EFFICIENCY LINEAR REGULATOR
Datasheet:
Descnt:
Linear Voltage Regulator IC Positive and Negative Adjustable (Fixed) 2 Output 350mA 16-CDIP
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
-
Packaging
Tube
Part Status
Active
Output Configuration
Positive and Negative
Output Type
Adjustable (Fixed)
Number of Regulators
2
Voltage - Input (Max)
36V
Voltage - Output (Min/Fixed)
-2V (1.5V)
Voltage - Output (Max)
36V
Voltage Dropout (Max)
-
Current - Output
350mA
Current - Quiescent (Iq)
7 mA
PSRR
-
Control Features
Delay, Reset
Protection Features
Over Current, Over Temperature, Over Voltage, Under Voltage Lockout (UVLO)
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Through Hole
Package / Case
16-CDIP (0.300", 7.62mm)
Supplier Device Package
16-CDIP
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
-
Additional Resources
Other Names
296-UC2834J
Standard Package
1
