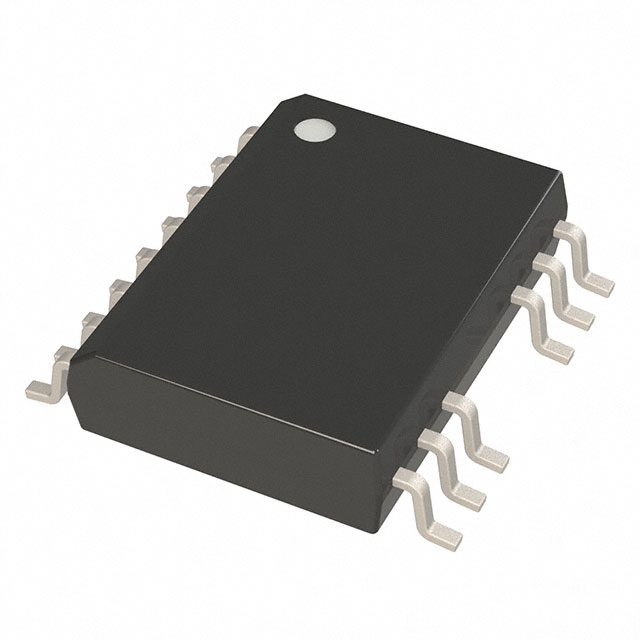

UCC21530QDWKRQ1 Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
UCC21530QDWKRQ1
Product Number:
UCC21530QDWKRQ1
MFR Standard Lead Time:
Package/Case:
14-SOIC (0.295\, 7.50mm Width)
Detailed Description:
IC GATE DRVR ISOLATED
Datasheet:
Descnt:
Half-Bridge Gate Driver IC CMOS/TTL 14-SOIC
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
DigiKey Programmable
Not Verified
Driven Configuration
Half-Bridge
Channel Type
Independent
Number of Drivers
2
Gate Type
IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply
3V ~ 18V
Logic Voltage - VIL, VIH
1.2V, 1.6V
Current - Peak Output (Source, Sink)
4A, 6A
Input Type
CMOS/TTL
Rise / Fall Time (Typ)
6ns, 7ns
Operating Temperature
-40°C ~ 130°C (TJ)
Grade
Automotive
Qualification
AEC-Q100
Mounting Type
Surface Mount
Package / Case
14-SOIC (0.295", 7.50mm Width)
Supplier Device Package
14-SOIC
Base Product Number
UCC21530
-
Documents & Media
Environmental & Export Classifications
RoHS Status
Not applicable
Moisture Sensitivity Level (MSL)
3 (168 Hours)
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
Standard Package
2,000
