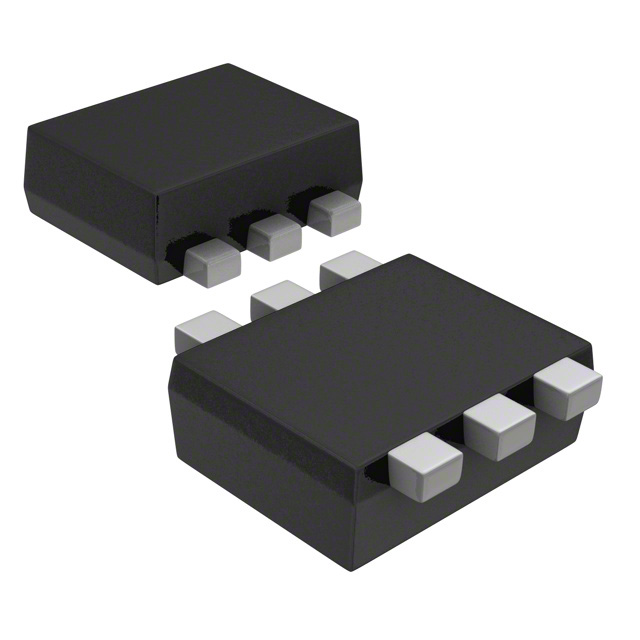

UCLAMP0505A.TCT Semtech Corporation
Favorite
Compare
Manufacturer:
Semtech Corporation
MFR Product Number:
UCLAMP0505A.TCT
Product Number:
UCLAMP0505A-TCT
MFR Standard Lead Time:
13 Weeks
Package/Case:
SOT-563, SOT-666
Detailed Description:
TVS DIODE 5VWM 12VC SC89-6
Datasheet:
Descnt:
12V Clamp 7A (8/20µs) Ipp Tvs Diode Surface Mount SC-89 (SOT-666)
In Stock
10973
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Semtech Corporation
Series
uClamp®
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
Zener
Unidirectional Channels
5
Voltage - Reverse Standoff (Typ)
5V (Max)
Voltage - Breakdown (Min)
6V
Voltage - Clamping (Max) Ipp
12V
Current - Peak Pulse (10/1000µs)
7A (8/20µs)
Power - Peak Pulse
100W
Power Line Protection
No
Applications
General Purpose
Capacitance Frequency
60pF 1MHz
Operating Temperature
-55°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
SOT-563, SOT-666
Supplier Device Package
SC-89 (SOT-666)
Base Product Number
UCLAMP0505
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8541.10.0080
-
Additional Resources
Other Names
Standard Package
3,000
