Compare

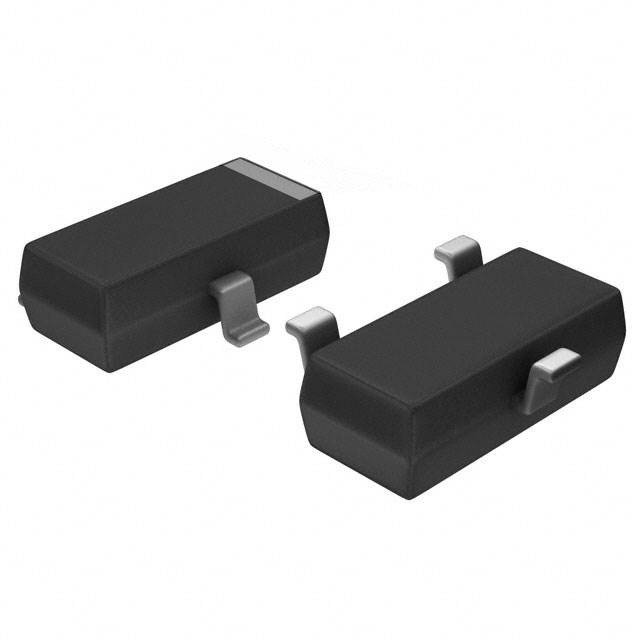

UDT23A12L02 YAGEO
Favorite
Compare
Manufacturer:
YAGEO
MFR Product Number:
UDT23A12L02
Product Number:
UDT23A12L02
MFR Standard Lead Time:
34 Weeks
Package/Case:
TO-236-3, SC-59, SOT-23-3
Detailed Description:
TVS ESD, SOT-23, 12V, 25V, REEL
Datasheet:
Descnt:
25V Clamp 10A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23
In Stock
3000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
YAGEO
Series
UDT23AXXL02
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
Zener
Bidirectional Channels
2
Voltage - Reverse Standoff (Typ)
12V (Max)
Voltage - Breakdown (Min)
13.3V
Voltage - Clamping (Max) Ipp
25V
Current - Peak Pulse (10/1000µs)
10A (8/20µs)
Power - Peak Pulse
400W
Power Line Protection
No
Applications
USB
Capacitance Frequency
0.8pF 1MHz
Operating Temperature
-55°C ~ 150°C (TJ)
Mounting Type
Surface Mount
Package / Case
TO-236-3, SC-59, SOT-23-3
Supplier Device Package
SOT-23
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8541.10.0080
-
Additional Resources
Other Names
Standard Package
3,000
