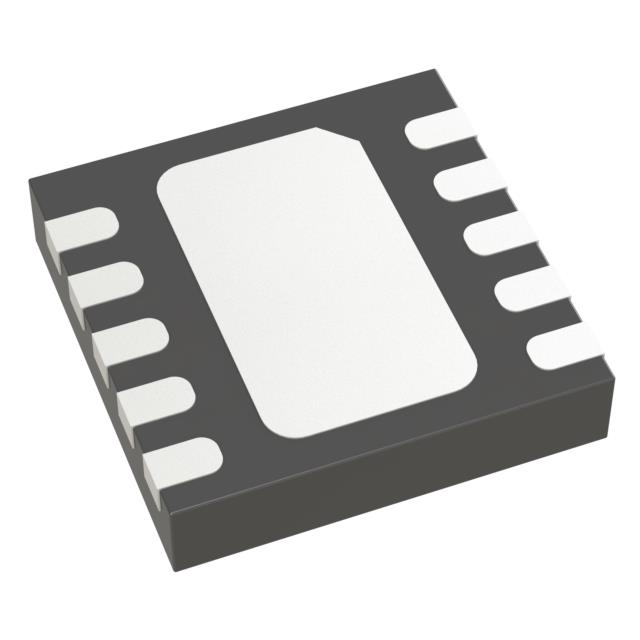

UED26A03L05 YAGEO
Favorite
Compare
Manufacturer:
YAGEO
MFR Product Number:
UED26A03L05
Product Number:
UED26A03L05
MFR Standard Lead Time:
20 Weeks
Package/Case:
10-UFDFN Exposed Pad
Detailed Description:
TVS ESD QFN-3020 3.3V 30V
Datasheet:
Descnt:
25V Clamp 30A (8/20µs) Ipp Tvs Diode Surface Mount DFN2626
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
YAGEO
Series
UED26A03L05
Packaging
Tape & Reel (TR)
Part Status
Active
Type
Steering (Rail to Rail)
Unidirectional Channels
4
Voltage - Reverse Standoff (Typ)
3.3V (Max)
Voltage - Breakdown (Min)
3.8V
Voltage - Clamping (Max) Ipp
25V
Current - Peak Pulse (10/1000µs)
30A (8/20µs)
Power - Peak Pulse
-
Power Line Protection
Yes
Applications
Ethernet
Capacitance Frequency
4pF 1MHz
Operating Temperature
-55°C ~ 150°C (TJ)
Grade
-
Qualification
-
Mounting Type
Surface Mount
Package / Case
10-UFDFN Exposed Pad
Supplier Device Package
DFN2626
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Additional Resources
Other Names
13-UED26A03L05TR
Standard Package
3,000
