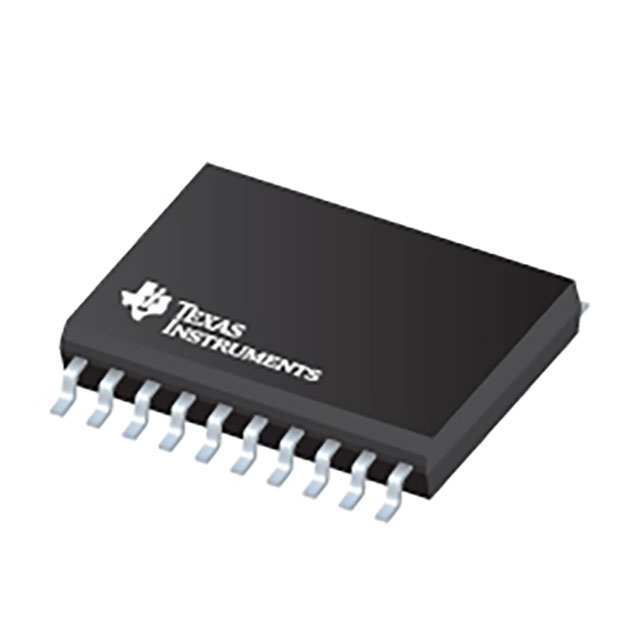

ULN2803CDWR Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
ULN2803CDWR
Product Number:
ULN2803CDWR
MFR Standard Lead Time:
6 Weeks
Package/Case:
20-SOIC (0.295\, 7.50mm Width)
Detailed Description:
50-V, EIGHT-CHANNEL DARLINGTON A
Datasheet:
Descnt:
NPN IC 8 Channel 20-SOIC
In Stock
36838
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Logic Type
NPN
Number of Circuits
8
Number of Inputs
8
Features
-
Voltage - Supply
0V ~ 50V
Current - Output High, Low
300mA, 20mA
Input Logic Level - Low
-
Input Logic Level - High
-
Max Propagation Delay V, Max CL
130ns 50V, 15pF
Operating Temperature
-65°C ~ 150°C (TJ)
Grade
-
Qualification
-
Mounting Type
Surface Mount
Supplier Device Package
20-SOIC
Package / Case
20-SOIC (0.295", 7.50mm Width)
Base Product Number
ULN2803
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
2,000
