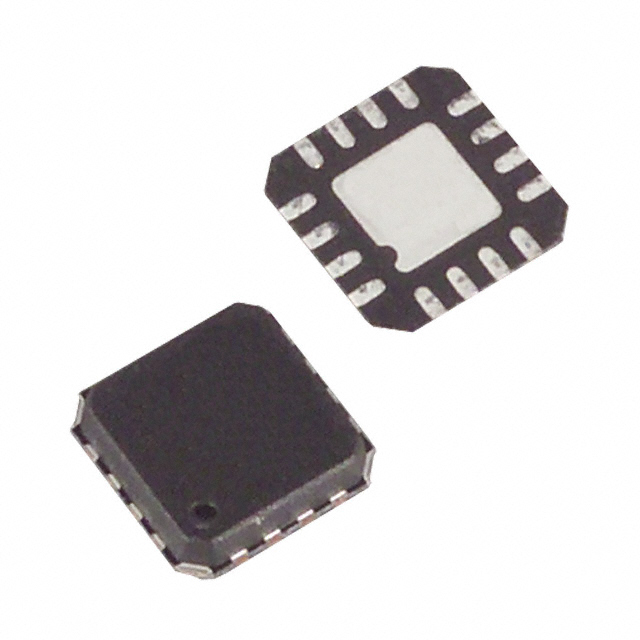

UM3699A Union Semiconductor International Limited
Favorite
Compare
Manufacturer:
Union Semiconductor International Limited
MFR Product Number:
UM3699A
Product Number:
UM3699A
MFR Standard Lead Time:
Package/Case:
16-WFQFN Exposed Pad
Detailed Description:
Dual DPDT Ultra-Low RON Analog S
Datasheet:
Descnt:
2 Circuit IC Switch 2:2 550mOhm 16-QFN (3x3)
In Stock
83052
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Union Semiconductor International Limited
Series
UM3699A
Packaging
Tape & Reel (TR)
Part Status
Active
Switch Circuit
DPDT - NO/NC
Multiplexer/Demultiplexer Circuit
2:2
Number of Circuits
2
On-State Resistance (Max)
550mOhm
Channel-to-Channel Matching (ΔRon)
50mOhm (Max)
Voltage - Supply, Single (V+)
1.65V ~ 5.5V
Voltage - Supply, Dual (V±)
-
Switch Time (Ton, Toff) (Max)
50ns, 30ns
-3db Bandwidth
20MHz
Charge Injection
50pC
Channel Capacitance (CS(off), CD(off))
72pF
Current - Leakage (IS(off)) (Max)
100nA
Crosstalk
-62dB 100kHz
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
16-WFQFN Exposed Pad
Supplier Device Package
16-QFN (3x3)
-
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS Compliant
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
3351-UM3699ATR
Standard Package
2
