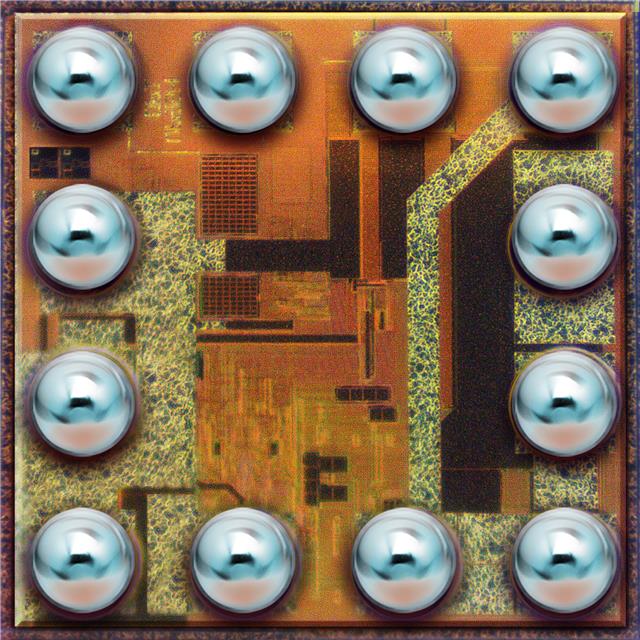

UP1966E EPC
Favorite
Compare
Manufacturer:
EPC
MFR Product Number:
UP1966E
Product Number:
UP1966E
MFR Standard Lead Time:
24 Weeks
Package/Case:
12-UFBGA, WLCSP
Detailed Description:
IC GATE DRVR HALF-BRIDGE 12WLCSP
Datasheet:
Descnt:
Half-Bridge Gate Driver IC Non-Inverting 12-WLCSP-B (1.6x1.6)
In Stock
50982
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
EPC
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
DigiKey Programmable
Not Verified
Driven Configuration
Half-Bridge
Channel Type
Independent
Number of Drivers
2
Gate Type
Enhanced Mode GaN FET
Voltage - Supply
4.5V ~ 5.5V
Logic Voltage - VIL, VIH
0.5V, 2.3V
Current - Peak Output (Source, Sink)
7.1A, 12.5A
Input Type
Non-Inverting
High Side Voltage - Max (Bootstrap)
85 V
Rise / Fall Time (Typ)
8ns, 4ns
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
12-UFBGA, WLCSP
Supplier Device Package
12-WLCSP-B (1.6x1.6)
Base Product Number
UP1966
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
