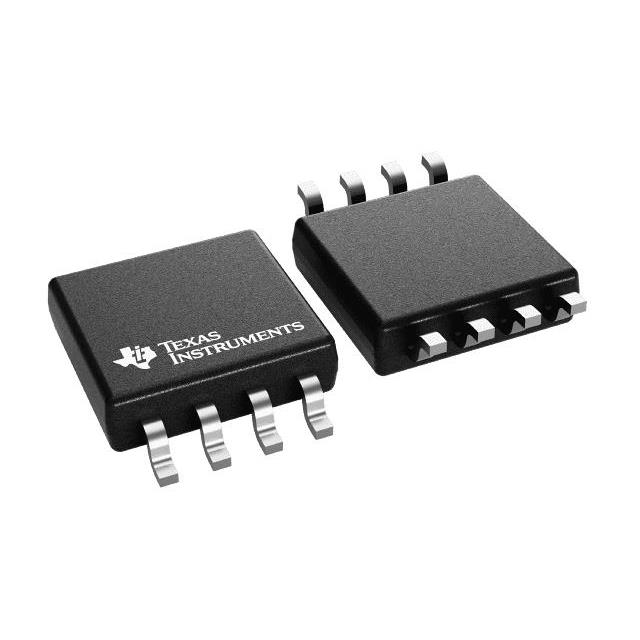

V62/05623-01XE Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
V62/05623-01XE
Product Number:
V62-05623-01XE
MFR Standard Lead Time:
6 Weeks
Package/Case:
8-LSSOP, 8-MSOP (0.110\, 2.80mm Width)
Detailed Description:
IC GATE NAND 2CH 2-INP SM8
Datasheet:
Descnt:
NAND Gate IC 2 Channel SM8
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
74LVC
Packaging
Tape & Reel (TR)
Part Status
Active
Logic Type
NAND Gate
Number of Circuits
2
Number of Inputs
2
Features
-
Voltage - Supply
1.65V ~ 5.5V
Current - Quiescent (Max)
10 µA
Current - Output High, Low
32mA, 32mA
Input Logic Level - Low
0.7V ~ 0.8V
Input Logic Level - High
1.7V ~ 2V
Max Propagation Delay V, Max CL
4.3ns 5V, 50pF
Operating Temperature
-55°C ~ 115°C
Mounting Type
Surface Mount
Supplier Device Package
SM8
Package / Case
8-LSSOP, 8-MSOP (0.110", 2.80mm Width)
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
REACH Status
REACH Unaffected
Additional Resources
Other Names
296-V62/05623-01XETR
Standard Package
3,000
