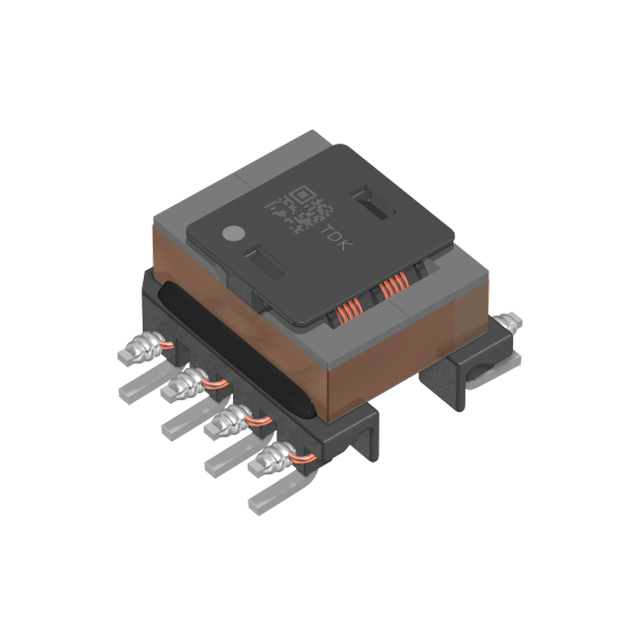

VGT12EEM-200S1A4 TDK Corporation
Favorite
Compare
Manufacturer:
TDK Corporation
MFR Product Number:
VGT12EEM-200S1A4
Product Number:
VGT12EEM-200S1A4
MFR Standard Lead Time:
20 Weeks
Package/Case:
Detailed Description:
XFMR FLYBACK AC/DC CONV 10UH SMD
Datasheet:
Descnt:
Flyback Converters For For AC/DC Converters SMPS Transformer 2600Vrms Isolation Surface Mount
In Stock
808
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
TDK Corporation
Series
VGT
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
For AC/DC Converters
Applications
Flyback Converters
Intended Chipset
-
Chipset Manufacturer
-
Voltage - Primary
-
Voltage - Auxiliary
-
Voltage - Isolation
2600Vrms
Inductance Frequency
10µH 100kHz
Frequency
-
Operating Temperature
-40°C ~ 130°C
Mounting Type
Surface Mount
Size / Dimension
0.535" L x 0.425" W (13.60mm x 10.80mm)
Height - Seated (Max)
0.394" (10.00mm)
Footprint
0.583" L x 0.535" W (14.80mm x 13.60mm)
Style
Wirewound
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
250
