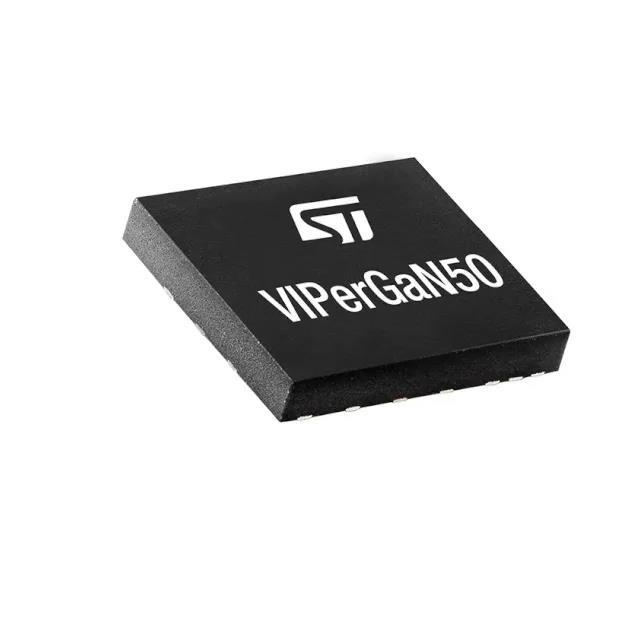

VIPERGAN50TR STMicroelectronics
Favorite
Compare
Manufacturer:
STMicroelectronics
MFR Product Number:
VIPERGAN50TR
Product Number:
VIPERGAN50TR
MFR Standard Lead Time:
16 Weeks
Package/Case:
15-VQFN Exposed Pad
Detailed Description:
HV CONVERTER EMBEDDING ADVANCED
Datasheet:
Descnt:
Converter Offline Flyback Topology 240kHz 15-QFN (5x6)
In Stock
250
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
STMicroelectronics
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Output Isolation
Isolated
Internal Switch(s)
Yes
Voltage - Breakdown
650V
Topology
Flyback
Voltage - Supply (Vcc/Vdd)
9V ~ 23V
Duty Cycle
50%
Frequency - Switching
240kHz
Power (Watts)
50 W
Fault Protection
Current Limiting, Over Load, Over Temperature, Over Voltage
Control Features
Soft Start
Operating Temperature
-40°C ~ 150°C (TJ)
Package / Case
15-VQFN Exposed Pad
Supplier Device Package
15-QFN (5x6)
Mounting Type
Surface Mount
Base Product Number
VIPERGAN50
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
4,000
