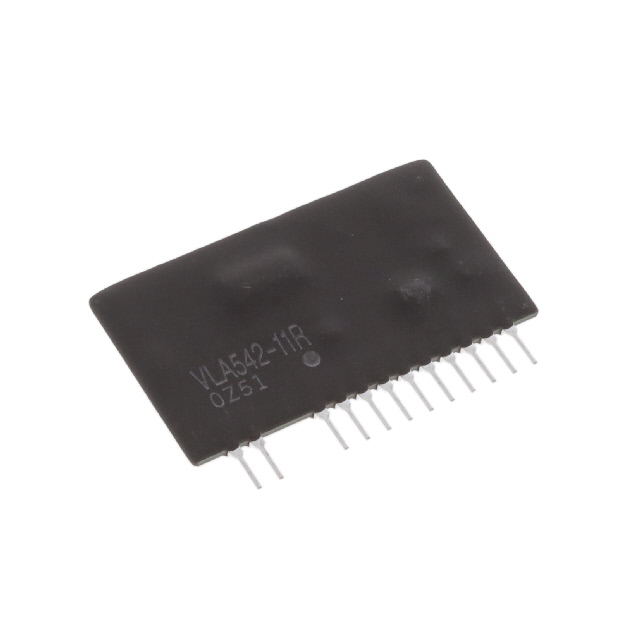

VLA542-11R Powerex Inc.
Favorite
Compare
Manufacturer:
Powerex Inc.
MFR Product Number:
VLA542-11R
Product Number:
VLA542-11R
MFR Standard Lead Time:
Package/Case:
14-SIP Module, 12 Leads
Detailed Description:
IC GATE DRVR PWR MGMT MOSFET
Datasheet:
Descnt:
High-Side Gate Driver IC CMOS Module
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Powerex Inc.
Series
-
Packaging
Bulk
Part Status
Active
DigiKey Programmable
Not Verified
Driven Configuration
High-Side
Channel Type
Single
Number of Drivers
1
Gate Type
IGBT
Voltage - Supply
14V ~ 17V
Logic Voltage - VIL, VIH
-
Current - Peak Output (Source, Sink)
5A, 5A
Input Type
CMOS
Rise / Fall Time (Typ)
400ns, 300ns
Operating Temperature
-20°C ~ 70°C
Mounting Type
Through Hole
Package / Case
14-SIP Module, 12 Leads
Supplier Device Package
Module
Base Product Number
VLA542
-
Documents & Media
Environmental & Export Classifications
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Standard Package
1
-
