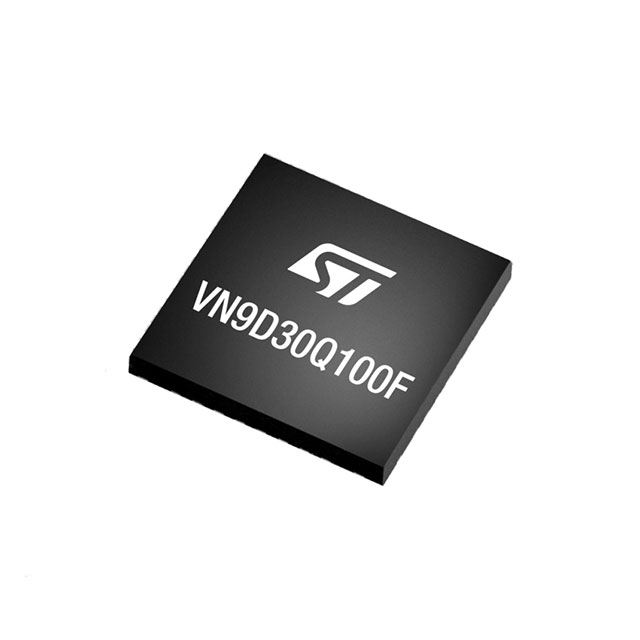

VN9D30Q100FTR STMicroelectronics
Favorite
Compare
Manufacturer:
STMicroelectronics
MFR Product Number:
VN9D30Q100FTR
Product Number:
VN9D30Q100FTR
MFR Standard Lead Time:
26 Weeks
Package/Case:
32-PowerVFQFN
Detailed Description:
6-CHANNEL HIGH-SIDE DRIVER WITH
Datasheet:
Descnt:
Power Switch/Driver 1:6 N-Channel 6.6A 32-QFN (6x6)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
STMicroelectronics
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Switch Type
General Purpose
Number of Outputs
6
Ratio - Input:Output
1:6
Output Configuration
High Side
Output Type
N-Channel
Interface
SPI
Voltage - Load
4V ~ 29V
Voltage - Supply (Vcc/Vdd)
2.7V ~ 5.5V
Current - Output (Max)
6.6A
Rds On (Typ)
90mOhm
Input Type
Non-Inverting
Features
Status Flag
Fault Protection
Current Limiting (Fixed), Over Temperature, Over Voltage
Operating Temperature
-40°C ~ 150°C (TJ)
Mounting Type
Surface Mount, Wettable Flank
Supplier Device Package
32-QFN (6x6)
Package / Case
32-PowerVFQFN
Base Product Number
VN9D30Q100
Documents & Media
Datasheets
Featured Product
VN9D30Q100F 6-Channel High-Side Driver
VIPower M0-9 Smart High-Side Switches
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
