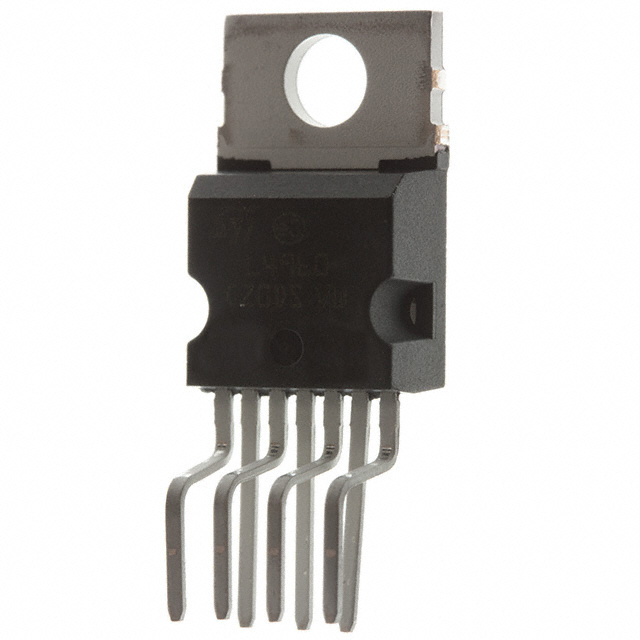

VND05B-11-E STMicroelectronics
Favorite
Compare
Manufacturer:
STMicroelectronics
MFR Product Number:
VND05B-11-E
Product Number:
VND05B-11-E
MFR Standard Lead Time:
Package/Case:
Heptawatt-7 (Horizontal, Bent and Staggered Leads)
Detailed Description:
IC PWR SMART SSR N-CH HEPTAWATT7
Datasheet:
Descnt:
Power Switch/Driver 1:1 N-Channel 1.6A 7-HEPTAWATT
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
STMicroelectronics
Series
-
Packaging
Tube
Part Status
Obsolete
Switch Type
General Purpose
Number of Outputs
2
Ratio - Input:Output
1:1
Output Configuration
High Side
Output Type
N-Channel
Interface
On/Off
Voltage - Load
6V ~ 26V
Voltage - Supply (Vcc/Vdd)
Not Required
Current - Output (Max)
1.6A
Rds On (Typ)
200mOhm (Max)
Input Type
Non-Inverting
Features
Status Flag
Fault Protection
Open Load Detect, Over Temperature
Operating Temperature
-40°C ~ 150°C (TJ)
Mounting Type
Through Hole
Supplier Device Package
7-HEPTAWATT
Package / Case
Heptawatt-7 (Horizontal, Bent and Staggered Leads)
Base Product Number
VND05
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Standard Package
50
-
