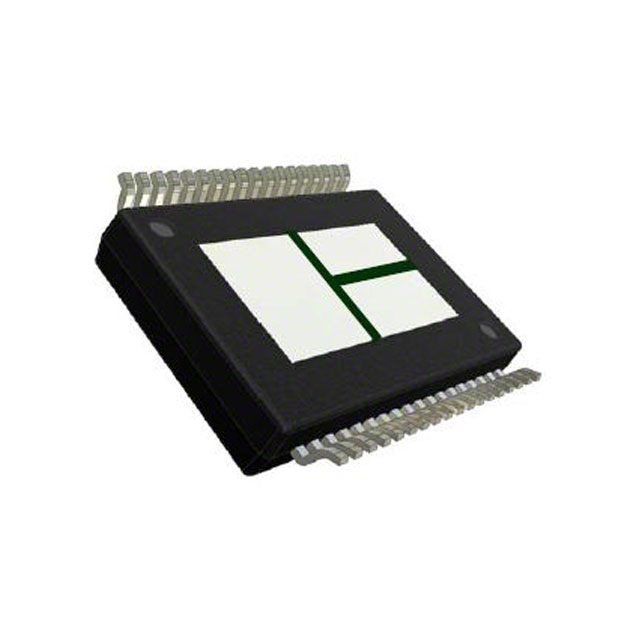

VNH5180ATR-E STMicroelectronics
Favorite
Compare
Manufacturer:
STMicroelectronics
MFR Product Number:
VNH5180ATR-E
Product Number:
VNH5180ATR-E
MFR Standard Lead Time:
26 Weeks
Package/Case:
36-PowerBFSOP (0.295\, 7.50mm Width)
Detailed Description:
IC MTR DRVR 5.5V-18V 36POWERSSO
Datasheet:
Descnt:
Motor Driver Power MOSFET Parallel, PWM PowerSSO-36 TP
In Stock
4869
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
STMicroelectronics
Series
ECOPACK®, VIPower™
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Motor Type - Stepper
-
Motor Type - AC, DC
Brushed DC
Function
Driver - Fully Integrated, Control and Power Stage
Output Configuration
Half Bridge (2)
Interface
Parallel, PWM
Technology
Power MOSFET
Step Resolution
-
Applications
-
Current - Output
8A
Voltage - Supply
5.5V ~ 18V
Voltage - Load
5.5V ~ 18V
Operating Temperature
-40°C ~ 150°C (TJ)
Grade
Automotive
Mounting Type
Surface Mount
Package / Case
36-PowerBFSOP (0.295", 7.50mm Width)
Supplier Device Package
PowerSSO-36 TP
Base Product Number
VNH5180
-
Documents & Media
Product Training Modules
VIPower H-Bridges
L99ASC03 Fully-Integrated Motor Driver IC for Three-Phase Brushless Motors
PCN Packaging
Material Barrier Bag 17/Dec/2020
Box Label Chg 28/Jul/2016
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
1,000
