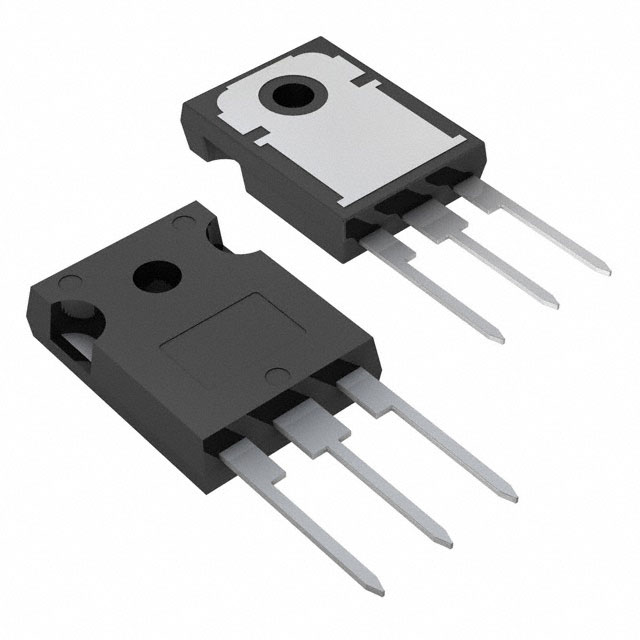

VNW100N04 STMicroelectronics
Favorite
Compare
Manufacturer:
STMicroelectronics
MFR Product Number:
VNW100N04
Product Number:
VNW100N04
MFR Standard Lead Time:
Package/Case:
TO-247-3
Detailed Description:
IC PWR DRIVER N-CHAN 1:1 TO247-3
Datasheet:
Descnt:
Power Switch/Driver 1:1 N-Channel 35A TO-247-3
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
STMicroelectronics
Series
OMNIFET™, VIPower™
Packaging
Bulk
Part Status
Obsolete
Switch Type
General Purpose
Number of Outputs
1
Ratio - Input:Output
1:1
Output Configuration
Low Side
Output Type
N-Channel
Interface
On/Off
Voltage - Load
35V (Max)
Voltage - Supply (Vcc/Vdd)
Not Required
Current - Output (Max)
35A
Rds On (Typ)
12mOhm (Max)
Input Type
Non-Inverting
Features
-
Fault Protection
Current Limiting (Fixed), Over Temperature, Over Voltage
Operating Temperature
-
Mounting Type
Through Hole
Supplier Device Package
TO-247-3
Package / Case
TO-247-3
Base Product Number
VNW100
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8541.29.0095
-
Additional Resources
Standard Package
300
-
