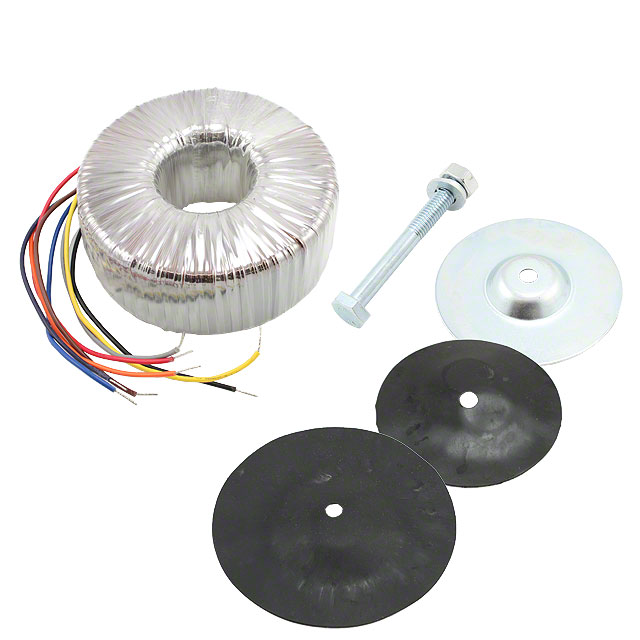

VPT230-2170 Triad Magnetics
Favorite
Compare
Manufacturer:
Triad Magnetics
MFR Product Number:
VPT230-2170
Product Number:
VPT230-2170
MFR Standard Lead Time:
19 Weeks
Package/Case:
Detailed Description:
PWR XFMR TOROIDAL 500VA CHAS MT
Datasheet:
Descnt:
In Stock
196
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Triad Magnetics
Series
Chassis Mount: World Series™
Packaging
Box
Part Status
Active
Type
Toroidal
Voltage - Primary
115V, 230V
Voltage - Secondary (Full Load)
Parallel 115V, Series 230V
Current - Output (Max)
Parallel 4.34A, Series 2.17A
Primary Winding(s)
Dual
Secondary Winding(s)
Dual
Center Tap
No
Power - Max
500VA
Mounting Type
Chassis Mount
Termination Style
Wire Leads
Size / Dimension
140.00mm Dia x 60.00mm W
Height - Seated (Max)
66.0mm
Voltage - Isolation
4000Vrms
Weight
9.3 lbs (4.2 kg)
Documents & Media
Product Drawings
VPT Series Top
VPT Series Side
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4065
-
Additional Resources
Other Names
Standard Package
1
